6SL32230DE137BG1

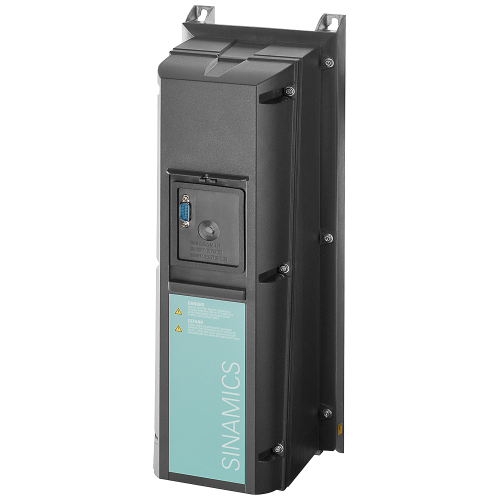

PM230 IP55 - 0.37kW (1.3 A) , Power Module with Class B Filter, (FSA)

Manufacturer's No: 6SL3223-0DE13-7BG1     Manufacturer: Siemens
PM230 IP55 - 0.37kW (1.3 A) , Power Module with Class B Filter, (FSA)

Availability Back Order

£443.88
  • SINAMICS G120P Power Module PM230
  • Integrated Class B filter
  • Degree of protection: IP55/UL Type 12
  • Input voltage: 380-480 V 3 AC +/- 10%
  • Power overload: 0.37 kW at 150% for 3s, 110% for 57s, 100% for 240s
  • Ambient temperature: -10 to +40 °C
  • Dimensions: 460 x 154 x 249 mm (HxWxD)
  • Suitable for use with CU230P-2 Control Unit
  • Firmware version: V4.3.2 or higher

Selectable mandatory product

Accessories

Instructional video
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
6SL3223-0DE13-7BG1
Net Weight -
4.39kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
AL: 9I999KP / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP55
Degree of protection (IP rating) -
IP55
Mains frequency -
50/60 Hz
Application in domestic- and commercial area permitted -
Application in industrial area permitted -
Depth -
249 Millimetre
Height -
460 Millimetre
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
0.25 Kilowatt
Max. output at quadratic load at rated output voltage -
0.37 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
1.3 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
10 Percentage
Type of converter -
U converter
Width -
154 Millimetre

Availability Back Order

£443.88
