6SL32230DE337BA0

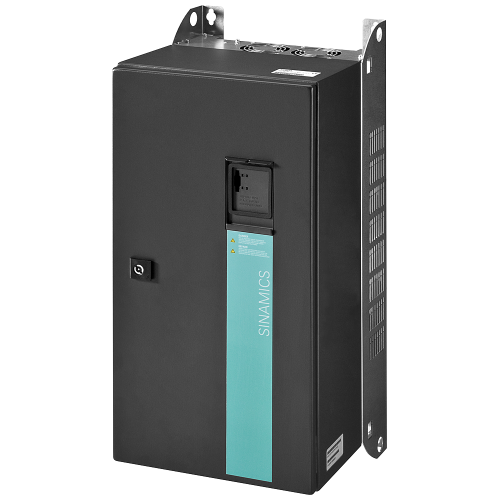

SINAMICS PM230, IP55 / UL type 12, FSE, B, 380-480 V 3 AC, 37,00 kW

Manufacturer's No: 6SL3223-0DE33-7BA0     Manufacturer: Siemens
SINAMICS PM230, IP55 / UL type 12, FSE, B, 380-480 V 3 AC, 37,00 kW

Availability Back Order

£6,426.94
  • Power Module: SINAMICS G120P PM230
  • Built-in Class B Filter Protection
  • IP55 / UL Type12 rated
  • Input: 3AC 380-480V +/-10%, 47-63Hz
  • Output: 37kW for 110% overload for 60s, 100% for 240s
  • Ambient Temperature: 0 to +40°C
  • Dimensions: 751 x 320 x 329 mm (H x W x D)
  • Does not include control unit and panel
  • Approved for CU230P-2 firmware version V4.3.2

Selectable mandatory product

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3223-0DE33-7BA0
Net Weight -
50.20kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

-
Siemens
Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP55
Degree of protection (IP rating) -
IP55
Mains frequency -
50/60 Hz
Application in domestic- and commercial area permitted -
Application in industrial area permitted -
Depth -
329 Millimetre
Height -
751 Millimetre
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
30 Kilowatt
Max. output at quadratic load at rated output voltage -
37 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
75 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
10 Percentage
Type of converter -
U converter
Width -
320 Millimetre
