6SL32202YE640CF0

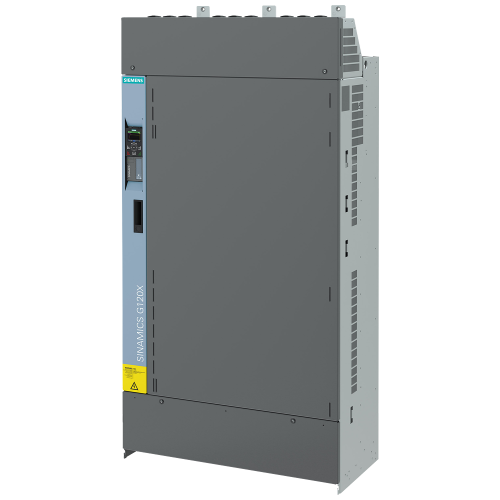

SINAMICS G120X, IP20 / UL open type, FSJ, C3, 3 AC 380-480 V, 500,00 kW

Manufacturer's No: 6SL3220-2YE64-0CF0     Manufacturer: Siemens
SINAMICS G120X, IP20 / UL open type, FSJ, C3, 3 AC 380-480 V, 500,00 kW

Availability Back Order

£28,481.79
  • Rated Power: 500 kW for 135% 3 seconds or 110% 60 seconds
  • EMC Filter for Category C3
  • Input: 3AC 380-480V +/- 10%, 47-63Hz
  • Ambient Temperature: 0 to +45 degrees Celsius
  • Frame Size: FSJ
  • Protection: IP20/UL Open Type
  • Basic Operator Panel included
  • No IO Expansion
  • Integrated Fieldbus: PROFINET-PN, Ethernet IP

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3220-2YE64-0CF0
Net Weight -
287.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
UNSPSC -
32121705

Technical Specification

Number of digital outputs -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
2
Degree of protection (IP rating) -
IP20
Mains frequency -
60 Hz
Application in industrial area permitted -
Depth -
393 Millimetre
Height -
1621 Millimetre
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
400 Kilowatt
Max. output at quadratic load at rated output voltage -
500 Kilowatt
Max. output frequency -
100 Hertz
Nominal output current I2N -
910 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
1
Number of digital inputs -
6
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
6
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
5
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Supporting protocol for EtherNet/IP -
Supporting protocol for TCP/IP -
Type of converter -
U converter
Width -
801 Millimetre

Availability Back Order

£28,481.79
