6SL41120JA150AF0

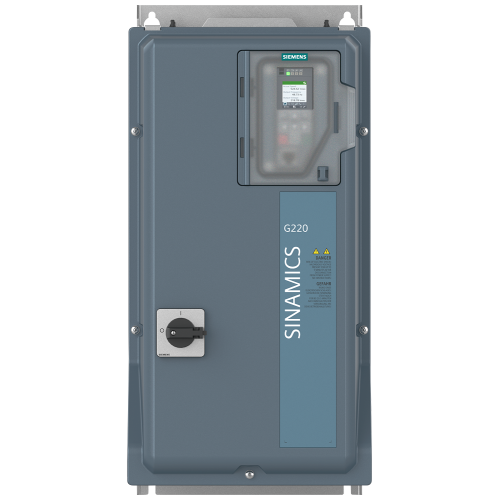

G220 DRIVE 4.0/5.5KW HO/LO 200V (IP55)

Manufacturer's No: 6SL4112-0JA15-0AF0     Manufacturer: Siemens
G220 DRIVE 4.0/5.5KW HO/LO 200V (IP55)

Availability Available to order

£2,041.28
  • Voltage: 200-240 V 3AC +/- 10-20%, 47-63 Hz
  • Power: 5.5 kW low overload (150% for 3 s, 110% for 57 s), 4 kW high overload (200% for 3 s, 150% for 57 s)
  • Dimensions: 460 x 240 x 250 mm (H x W x D), frame size FSC
  • Degree of protection: IP55 / UL type 12
  • Safety: SIL3
  • Painting: 3C2
  • Integrated braking chopper
  • Communication: PROFINET PN, Modbus TCP
  • Basic version, unfiltered

Accessories

Instructional video
Instructional video
Instructional video
Instructional video
Instructional video
Instructional video
Instructional video
Product video
Product video


Product

Manufacturer Material ID -
6SL4112-0JA15-0AF0
Net Weight -
21.60kg

Additional Product Information

Commodity Code -
85044095
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A999A
UNSPSC -
32121704

Technical Specification

4-quadrant operation possible -
Application in industrial area permitted -
Degree of protection (IP rating) -
IP55
Depth -
250 Millimetre
Height -
460 Millimetre
Mains voltage -
200 Volt
Max. output frequency -
550 Hertz
Nominal output current I2N -
27.7 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
1
Number of digital inputs -
6
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
6 Percentage
Relative symmetric net voltage tolerance -
-20 Percentage
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
Type of converter -
U converter
Width -
245 Millimetre
With PC connection -

Availability Available to order

£2,041.28
