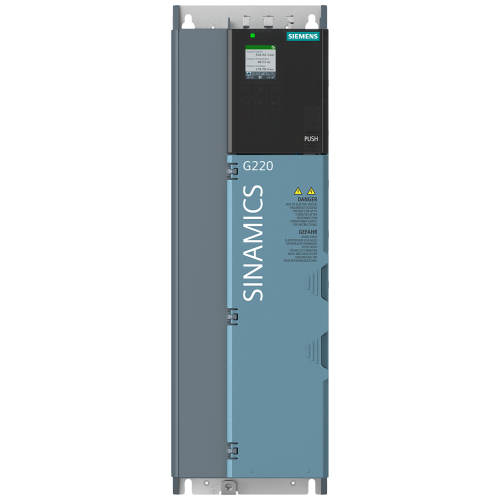

6SL41130CA170AF0

G220 DRIVE 7.5/11.0KW HO/LO 400V

Manufacturer's No: 6SL4113-0CA17-0AF0     Manufacturer: Siemens
G220 DRIVE 7.5/11.0KW HO/LO 400V

Availability Back Order

£2,025.12
  • Voltage: 380-500 V AC
  • Frequency: 47-63 Hz
  • Power:
    • Low Overload: 11 kW, 150% for 3 seconds, 110% for 57 seconds
    • High Overload: 7.5 kW, 200% for 3 seconds, 150% for 57 seconds
  • Dimensions: 355 x 125 x 209 mm (H x W x D)
  • Frame Size: FSC
  • Degree of Protection: IP20 / UL open type
  • Safety: SIL3 with integrated braking chopper
  • Communication: PROFINET PN, MODBUS TCP
Instructional video
Instructional video
Instructional video
Instructional video
Instructional video
Instructional video
Instructional video
Product video
Product video


Product

Manufacturer Material ID -
6SL4113-0CA17-0AF0
Net Weight -
9.50kg

Additional Product Information

Commodity Code -
85044086
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A999A
UNSPSC -
32121705

Technical Specification

4-quadrant operation possible -
Application in industrial area permitted -
Degree of protection (IP rating) -
IP20
Depth -
209 Millimetre
Height -
355 Millimetre
Mains voltage -
380 Volt
Max. output frequency -
550 Hertz
Nominal output current I2N -
27.7 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
1
Number of digital inputs -
6
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
6 Percentage
Relative symmetric net voltage tolerance -
-20 Percentage
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
Type of converter -
U converter
Width -
125 Millimetre
With PC connection -

Availability Back Order

£2,025.12
