6SL41130CA230AF0

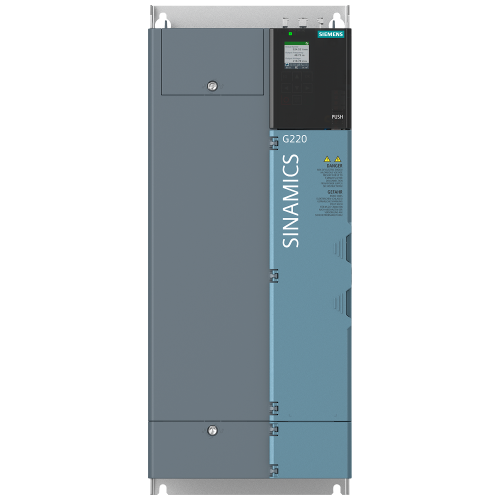

G220 DRIVE 22/30KW HO/LO 400V

Manufacturer's No: 6SL4113-0CA23-0AF0     Manufacturer: Siemens
G220 DRIVE 22/30KW HO/LO 400V

Availability Back Order

£3,991.24
  • Power Output: 22 kW (high overload) and 30 kW (low overload)
  • Voltage: 380-500 V
  • Frequency: 47-63 Hz
  • Dimensions: 460 x 200 x 245 mm (HxWxD)
  • Frame Size: FSD2
  • Degree of Protection: IP20 / UL open type
  • Safety: SIL3 with integrated braking chopper
  • Communication: PROFINET PN, Modbus TCP
Instructional video
Instructional video
Instructional video
Instructional video
Instructional video
Instructional video
Instructional video
Product video
Product video


Product

Manufacturer Material ID -
6SL4113-0CA23-0AF0
Net Weight -
22.50kg

Additional Product Information

Commodity Code -
85044086
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A999A
UNSPSC -
32121705

Technical Specification

4-quadrant operation possible -
Application in industrial area permitted -
Degree of protection (IP rating) -
IP20
Depth -
245 Millimetre
Height -
442 Millimetre
Mains voltage -
380 Volt
Max. output frequency -
550 Hertz
Nominal output current I2N -
64.7 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
1
Number of digital inputs -
6
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
6 Percentage
Relative symmetric net voltage tolerance -
-20 Percentage
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
Type of converter -
U converter
Width -
200 Millimetre
With PC connection -

Availability Back Order

£3,991.24
