6SL32105BE275UV0

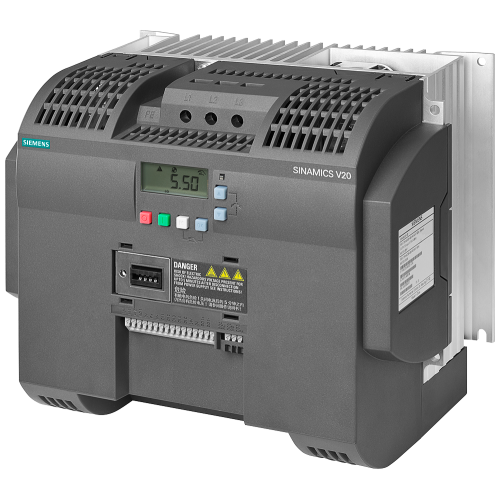

SINAMICS V20, IP20 / UL open type, FSD, 380-480 V 3 AC, 7,50 kW

Manufacturer's No: 6SL3210-5BE27-5UV0     Manufacturer: Siemens
SINAMICS V20, IP20 / UL open type, FSD, 380-480 V 3 AC, 7,50 kW

Availability Back Order

£678.40
  • Voltage: 380-480 V AC
  • Frequency: 47-63 Hz
  • Rated Power: 7.5 kW
  • Overload Capacity: 150% for 60 sec
  • Input/Output: 4 DI, 2 DO, 2 AI, 1 AQ
  • Fieldbus: USS/MODBUS RTU
  • Built-in Basic Operator Panel (BOP)
  • Protection Rating: IP20/UL open
  • Size: 240 x 207 x 173 mm (W x H x D)

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3210-5BE27-5UV0
Net Weight -
4.38kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
CN
Export Control Regulations -
AL: 9I999 / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Number of digital outputs -
-
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Application in industrial area permitted -
Depth -
172.5 Millimetre
Height -
206.5 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
7.5 Kilowatt
Max. output at quadratic load at rated output voltage -
7.5 Kilowatt
Max. output frequency -
550 Hertz
Max. output voltage -
480 Volt
Nominal output current I2N -
16.5 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
1
Number of digital inputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-15 Percentage
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Type of converter -
U converter
Width -
240 Millimetre

Availability Back Order

£678.40
