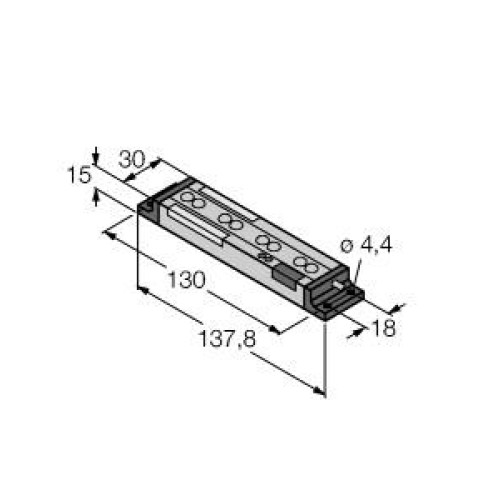

PVD Series: Parts Verification, 100 4 channel, Range, up to 2 m, Input: 12-30 V dc, Outputs: Selectable NPN/PNP, 2 m 5-pin M12 Pig

Manufacturer's No: PVD100Q     Manufacturer: Turck Banner
PVD Series: Parts Verification, 100 4 channel, Range, up to 2 m, Input: 12-30 V dc, Outputs: Selectable NPN/PNP, 2 m 5-pin M12 Pigtail QD

Availability Available to order

£365.56
  • Pick-to-Light system with Placement Sensor and Light Grid
  • Operating voltage: 12-30 VDC
  • Max. range: 400 mm
  • Cable length: 2 m
  • 4-beam system with beam spacing of 28.6 mm
  • Scan field: 111 mm
  • Range: max. 2 m with reflector, max. 400 mm in diffuse mode
  • Protection class: IP62
  • Cable: male end M12 x 1, 5-pin, 2 m
  • Job light: green, Mispick: red

Read more

  • Non-actuated current consumption: < 20 mA, < 70 mA with activated job light
  • DIP switches for adjustment of PNP/NPN switching output, NO/NC output, and work light
  • SMBPVA1 mounting bracket kit included
  • Reflector tape not included


Product

Manufacturer Material ID -
PVD100Q
Net Weight -
1.19kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216
Turck Banner

Availability Available to order

£365.56
