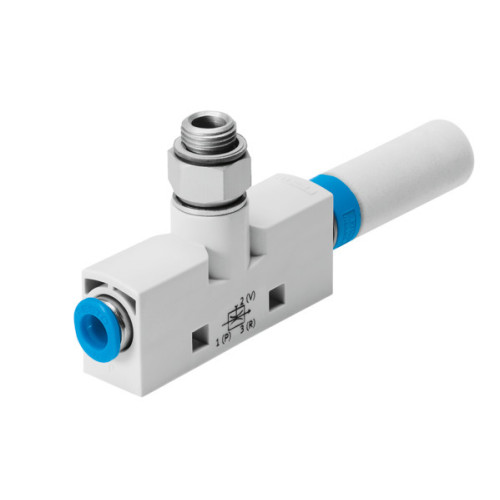

VN-05-H-T3-PQ2-VA4-RO1 Vacuum generator

Manufacturer's No: VN-05-H-T3-PQ2-VA4-RO1     Manufacturer: Festo
VN-05-H-T3-PQ2-VA4-RO1 Vacuum generator

Availability On Request

£45.24
  • Vacuum generator model: VN-05-H-T3-PQ2-VA4-RO1
  • Type: Standard, high vacuum
  • Width: 14 mm
  • Design: T-shape with plug connector and open silencer
  • Vacuum connection: Male thread
  • Nominal size Laval nozzle: 0.45 mm
  • Grid dimension: 14 mm
  • Ejector characteristic: High vacuum, Standard
  • Integrated function: Open silencer
  • Operating pressure for max. suction flow rate: 2.1 bar

Read more

  • Max. vacuum: 88%
  • Nominal operating pressure: 6 bar
  • Max. suction flow rate against atmosphere: 6.2 L/min
  • Air supply time at nominal operating pressure: 4.8 s
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature range: 0°C to 60°C
  • Sound pressure level at nominal operating pressure: 53 dBA
  • Ambient temperature range: 0°C to 60°C
  • Max. tightening torque: 0.5 Nm
  • Product weight: 26 g
  • Type of mounting: With through-hole, With accessories
  • Pneumatic connection port 1: QS-6
  • Pneumatic connection port 3: Open silencer
  • Vacuum connection: G1/8
  • Material connecting thread: Wrought aluminium alloy, Nickel-plated brass
  • Material seals: NBR
  • Material receiver nozzle: POM
  • Material housing: POM-reinforced
  • Material silencer: PE
  • Material transmitter nozzle: Wrought aluminium alloy
  • Material fitting: Brass, Nickel-plated
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-05-H-T3-PQ2-VA4-RO1
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
