VN-05-H-T4-PQ2-VQ2-O2-P Vacuum generator

Manufacturer's No: VN-05-H-T4-PQ2-VQ2-O2-P     Manufacturer: Festo

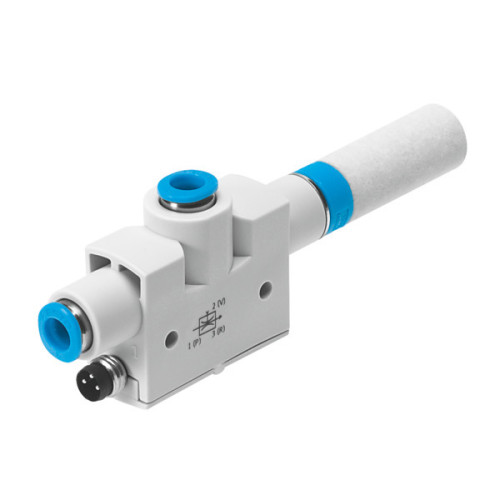

VN-05-H-T4-PQ2-VQ2-O2-P Vacuum generator

Availability On Request

£142.41
  • Vacuum generator model: VN-05-H-T4-PQ2-VQ2-O2-P
  • Integrated vacuum switch
  • Compact design: 18mm width, T shape with plug connector and open silencer
  • Nominal size Laval nozzle: 0.45mm, Grid dimension: 16mm
  • Ejector characteristics: High vacuum, Standard
  • Integrated functions: Pressure sensor, Open silencer
  • Short circuit current rating: Pulsed
  • Measured variable: Relative pressure
  • Measuring principle: Piezoresistive
  • Switching element function: N/O contact

Read more

  • Switching function: Threshold value comparator with variable hysteresis
  • Reverse polarity protection for all electrical connections
  • Display type: LED
  • Setting range threshold value: -0.1kPa to 0kPa, -1bar to 0bar, -14.5psi to 0psi
  • Operating pressure: 0.1MPa to 14.5psi
  • Max. vacuum: 92%
  • Nominal operating pressure: 0.6MPa to 87psi
  • Max. suction flow rate against atmosphere: 7.2L2
  • Switch-off time: 4ms, Switch-on time: 4ms
  • Operational voltage range DC: 15V to 30V
  • Max. output current: 100mA, Off-state current: 0.3mA
  • Residual ripple: 10%
  • Voltage drop: 1.5V
  • Overload protection available
  • Approvals: RCM trademark, KC-EMV, CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Media temperature: 0°C to 60°C
  • Recommended cleaning/purification: Soapy water
  • Sound pressure level at nominal operating pressure: 62dBA
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Max. tightening torque: 0.6Nm
  • Pressure measuring range: -0.1kPa to 0psi
  • Product weight: 33g
  • Accuracy: ±1.5% FS
  • Long-term drift: ±0.5% FS max.
  • Temperature coefficient of switching point: 0.05%/K
  • Electrical connection: 3-pin, M8
  • Type of mounting: With through-hole
  • Pneumatic connections: Port 1 QS-6, Port 3 Open silencer, Vacuum connection QS-6
  • Materials: Seals NBR, Receiver nozzle POM, Housing POM-reinforced, Fibre-optic PC, Silencer PE, Connector housing Brass, PA, Chrome-plated and nickel-plated, Transmitter nozzle Wrought aluminium alloy, Keypad POM, Fitting Brass, Nickel-plated


Product

Manufacturer Material ID -
VN-05-H-T4-PQ2-VQ2-O2-P
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
