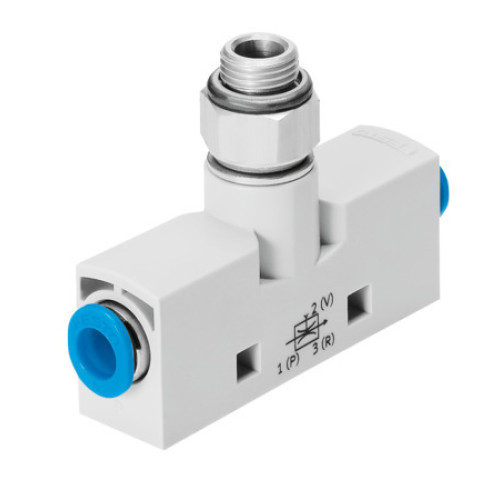

VN-05-L-T3-PQ2-VA4-RQ2 Vacuum generator

Manufacturer's No: VN-05-L-T3-PQ2-VA4-RQ2     Manufacturer: Festo
VN-05-L-T3-PQ2-VA4-RQ2 Vacuum generator

Availability On Request

£38.00
  • Vacuum generator model: VN-05-L-T3-PQ2-VA4-RQ2
  • Suction rate: High
  • Nozzle size: 0.45 mm
  • Grid dimension: 14 mm
  • Design: T-shaped
  • Operating pressure: 1 BAR to 8 BAR
  • Max. suction flow rate: 15.7 L2
  • Air supply time at nominal pressure: 1.7 s
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Corrosion resistance: Low (CRC: 1)

Read more

  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Temperature range: 0°C to 60°C
  • Max. tightening torque: 0.5 Nm
  • Weight: 24 g
  • Mounting: With through-hole and accessories
  • Pneumatic connections: QS-6
  • Vacuum connection: G1/8
  • Material:
    • Connecting thread: Wrought aluminium alloy
    • Seals: NBR
    • Receiver nozzle: POM
    • Housing: POM-reinforced
    • Transmitter nozzle: Wrought aluminium alloy
    • Fitting: Brass, nickel-plated
  • Note: Lubricated operation not possible, RoHS-compliant materials


Product

Manufacturer Material ID -
VN-05-L-T3-PQ2-VA4-RQ2
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£38.00
