532621

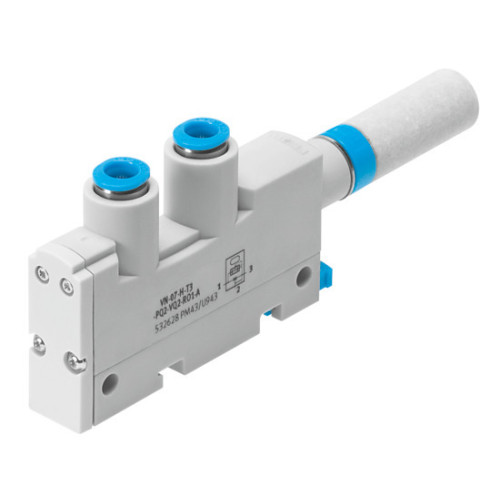

VN-05-L-T3-PQ2-VQ2-RO1-A Vacuum generator

Manufacturer's No: VN-05-L-T3-PQ2-VQ2-RO1-A     Manufacturer: Festo
VN-05-L-T3-PQ2-VQ2-RO1-A Vacuum generator

Availability On Request

£68.20
  • Vacuum generator VN-05-L-T3-PQ2-VQ2-RO1-A with ejector pulse
  • Standard and high suction volume options
  • Nominal size Laval nozzle: 0.45 mm
  • Grid dimension: 14 mm
  • Open silencer design
  • Mounting position: Any
  • Operating pressure: 1 to 8 BAR
  • Max. suction flow rate against atmosphere: 13.6 L/min
  • Air supply time at nominal operating pressure: 1.93 s
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: 0 to 60°C
  • Recommended cleaning/purification: Soapy water
  • Sound pressure level at nominal operating pressure: 52 dBA
  • Ambient temperature: 0 to 60°C
  • Max. tightening torque: 0.5 Nm
  • Product weight: 49 g
  • Type of mounting: With through-hole, H-rail, or accessories
  • Pneumatic connections: Port 1 (QS-6), Port 3 (Open silencer)
  • Vacuum connection: QS-6
  • Materials: Anodised wrought aluminium alloy, NBR seals, POM receiver nozzle, PA-reinforced and POM-reinforced housing, PE silencer, steel screws, wrought aluminium alloy transmitter nozzle, brass and nickel-plated fittings
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-05-L-T3-PQ2-VQ2-RO1-A
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
