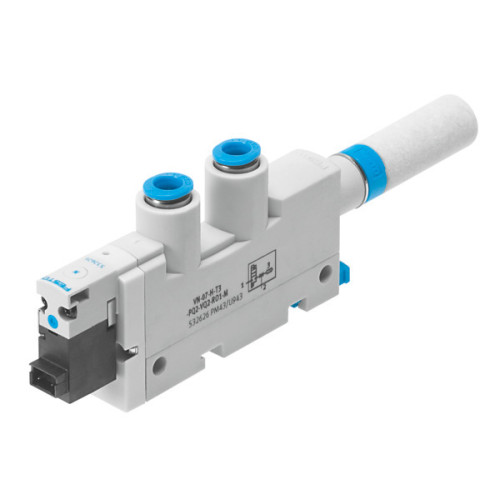

VN-05-L-T3-PQ2-VQ2-RO1-M Vacuum generator

Manufacturer's No: VN-05-L-T3-PQ2-VQ2-RO1-M     Manufacturer: Festo
VN-05-L-T3-PQ2-VQ2-RO1-M Vacuum generator

Availability On Request

£107.22
  • Vacuum generator model: VN-05-L-T3-PQ2-VQ2-RO1-M
  • Built-in solenoid valve
  • High suction rate: 13.6 L2
  • Laval nozzle size: 0.45 mm
  • Grid dimension: 14 mm
  • Design: T-shape with open silencer
  • Operating pressure range: 2 BAR to 8 BAR
  • Nominal operating pressure: 6 BAR
  • Air supply time at nominal pressure: 1.97 s
  • Electrical power consumption: 1.2 W

Read more

  • Duty cycle: 100%
  • Operating voltage range: 21.6 V to 26.4 V
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class: 1 (Low corrosion stress)
  • Media temperature range: 0°C to 50°C
  • Sound pressure level: 52 dBA
  • Degree of protection: IP40
  • Product weight: 60 g
  • Electrical connection: Plugs
  • Type of mounting: With through-hole, H-rail, and accessories
  • Pneumatic connections: Port 1 (QS-6), Port 3 (Open silencer)
  • Material: Anodised wrought aluminium alloy, NBR seals, POM receiver nozzle, PA-reinforced and POM-reinforced housing, PE silencer, steel screws, wrought aluminium alloy transmitter nozzle, brass and nickel-plated fittings
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-05-L-T3-PQ2-VQ2-RO1-M
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
