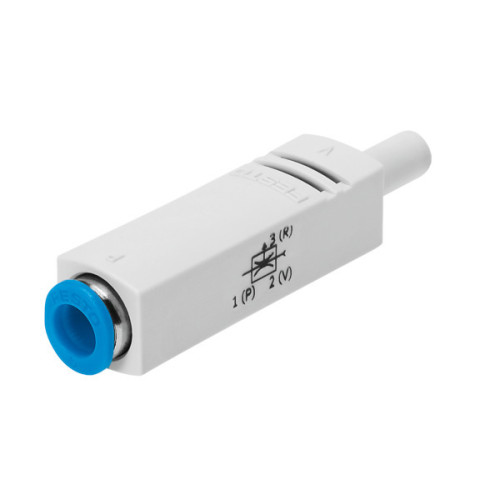

VN-05-M-I2-PQ1-VT1 Vacuum generator

Manufacturer's No: VN-05-M-I2-PQ1-VT1     Manufacturer: Festo
VN-05-M-I2-PQ1-VT1 Vacuum generator

Availability On Request

£31.81
  • Vacuum generator VN-05-M-I2-PQ1-VT1
    • In-line design, width: 14 mm
    • Nominal size Laval nozzle: 0.45 mm
    • Grid dimension: 10 mm
    • Ejector characteristic: High vacuum, Inline
    • Design structure: Straight shape
    • Operating pressure: 1 to 8 BAR
    • Max. vacuum: 86%
    • Max. suction flow rate: 6.1 L/min
    • Air supply time at nominal pressure: 4.7 sec
    • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
    • Corrosion resistance class: Low corrosion stress (CRC 1)
    • LABS (PWIS) conformity: VDMA24364-B1/B2-L
    • Media temperature: 0 to 60°C
    • Ambient temperature: 0 to 60°C
    • Product weight: 8 g
    • Type of mounting: In-line installation
    • Pneumatic connection port 1: QS-4
    • Vacuum connection: Push-in sleeve QS-4
    • Material seals: NBR
    • Material receiver nozzle: POM
    • Material housing: POM-reinforced
    • Material transmitter nozzle: Wrought aluminium alloy
    • Material fitting: Brass, Nickel-plated
    • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-05-M-I2-PQ1-VT1
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£31.81
