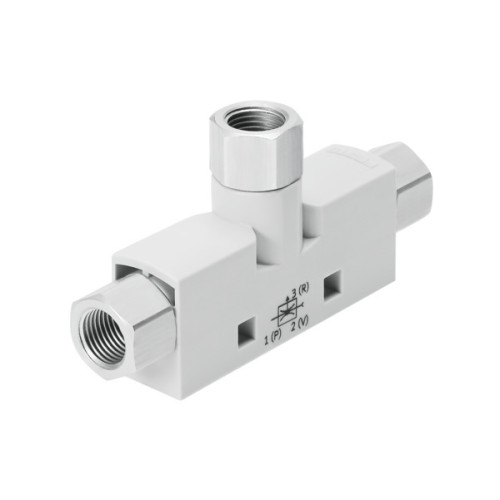

VN-05-M-T2-PI2-VI2-RI2 Vacuum generator

Manufacturer's No: VN-05-M-T2-PI2-VI2-RI2     Manufacturer: Festo
VN-05-M-T2-PI2-VI2-RI2 Vacuum generator

Availability On Request

£31.81
  • Vacuum generator VN-05-M-T2-PI2-VI2-RI2
  • In-line design, high vacuum, 10 mm width, female thread
  • Nominal size Laval nozzle: 0.45 mm
  • Grid dimension: 10 mm
  • Ejector characteristic: High vacuum, Inline
  • Design structure: T-shaped
  • Operating pressure for max. suction flow rate: 6.3 bar
  • Max. vacuum: 86%
  • Max. suction flow rate against atmosphere: 6.1 L/min
  • Air supply time at nominal operating pressure: 4.7 seconds

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature range: 0°C to 60°C
  • Ambient temperature range: 0°C to 60°C
  • Max. tightening torque: 0.5 Nm
  • Product weight: 13 g
  • Type of mounting: With through-hole, With accessories
  • Pneumatic connection port 1 & 3: M5
  • Vacuum connection: M5
  • Material connecting thread: Anodised wrought aluminium alloy
  • Material seals: NBR
  • Material receiver nozzle: POM
  • Material housing: POM-reinforced
  • Material transmitter nozzle: Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-05-M-T2-PI2-VI2-RI2
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
