532625

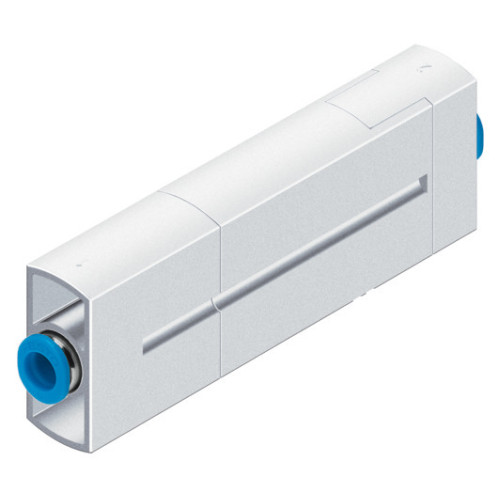

VN-05-N-I3-PQ2-VQ2-A Vacuum generator

Manufacturer's No: VN-05-N-I3-PQ2-VQ2-A     Manufacturer: Festo
VN-05-N-I3-PQ2-VQ2-A Vacuum generator

Availability On Request

£68.20
  • Vacuum generator VN-05-N-I3-PQ2-VQ2-A with ejector pulse
  • In-line design with high vacuum and a width of 14 mm
  • Nominal size Laval nozzle: 0.45 mm, Grid dimension: 14.5 mm
  • Ejector characteristic: Inline, High suction volume
  • Integrated function: Ejector pulse valve, pneumatic
  • Operating pressure for max. suction flow rate: 5 BAR
  • Operating pressure range: 1 BAR to 8 BAR
  • Nominal operating pressure: 6 BAR
  • Max. suction flow rate against atmosphere: 13.3 L/min
  • Air supply time at nominal operating pressure: 2.24 seconds

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature range: 0°C to 60°C
  • Recommended cleaning/purification: Soapy water
  • Sound pressure level at nominal operating pressure: 68 dBA
  • Ambient temperature range: 0°C to 60°C
  • Product weight: 38 g
  • Type of mounting: In-line installation
  • Pneumatic connection port: QS-6
  • Vacuum connection port: QS-6
  • Material: Anodised wrought aluminium alloy, NBR seals, POM receiver nozzle, PA-reinforced and POM-reinforced housing, Steel screws, Wrought aluminium alloy transmitter nozzle, Brass and nickel-plated fittings
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-05-N-I3-PQ2-VQ2-A
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£68.20
