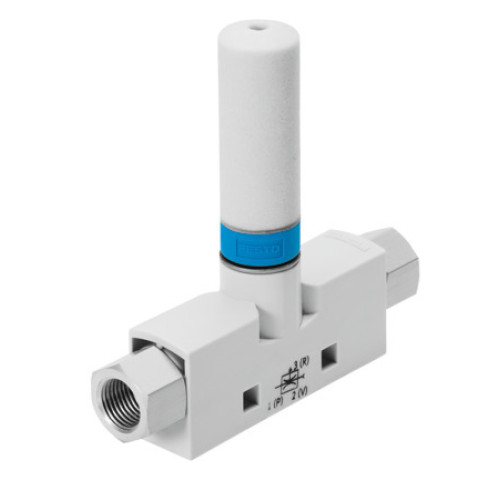

VN-05-N-T3-PI4-VI4-RO1 Vacuum generator

Manufacturer's No: VN-05-N-T3-PI4-VI4-RO1     Manufacturer: Festo
VN-05-N-T3-PI4-VI4-RO1 Vacuum generator

Availability On Request

£37.61
  • Vacuum generator VN-05-N-T3-PI4-VI4-RO1
  • High suction rate
  • Width: 14 mm
  • T-shape design with female thread and open silencer
  • Nominal size Laval nozzle: 0.45 mm
  • Grid dimension: 14 mm
  • Operating pressure for max. suction flow rate: 6 BAR
  • Max. suction flow rate against atmosphere: 12 L/min
  • Air supply time at nominal operating pressure: 1.57 seconds
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature range: 0 to 60 degrees Celsius
  • Sound pressure level at nominal operating pressure: 48 dBA
  • Ambient temperature range: 0 to 60 degrees Celsius
  • Product weight: 24 g
  • Pneumatic connection port 1: G1/8
  • Vacuum connection: G1/8
  • Material connecting thread: Anodised wrought aluminium alloy, Nickel-plated brass
  • Material seals: NBR
  • Material receiver nozzle: POM
  • Material housing: POM-reinforced
  • Material silencer: PE
  • Material transmitter nozzle: Wrought aluminium alloy


Product

Manufacturer Material ID -
VN-05-N-T3-PI4-VI4-RO1
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£37.61
