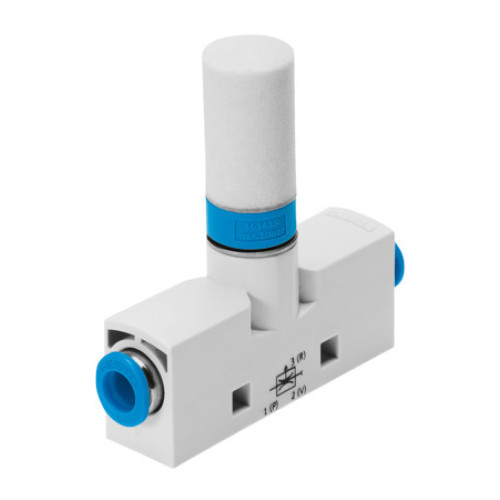

VN-05-N-T3-PQ2-VQ2-RO1 Vacuum generator

Manufacturer's No: VN-05-N-T3-PQ2-VQ2-RO1     Manufacturer: Festo
VN-05-N-T3-PQ2-VQ2-RO1 Vacuum generator

Availability On Request

£37.61
  • Vacuum generator VN-05-N-T3-PQ2-VQ2-RO1
  • In-line design with high suction rate
  • Width: 14 mm, T shape with plug connector
  • Nominal size Laval nozzle: 0.45 mm
  • Grid dimension: 14 mm
  • Open silencer design
  • Ejector characteristic: High suction flow rate, Inline
  • Operating pressure: 1 BAR to 8 BAR
  • Max. suction flow rate against atmosphere: 12 L/min
  • Air supply time at nominal operating pressure: 1.57 seconds

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: 0°C to 60°C
  • Sound pressure level at nominal operating pressure: 48 dBA
  • Ambient temperature: 0°C to 60°C
  • Max. tightening torque: 0.5 Nm
  • Product weight: 24 g
  • Type of mounting: With through-hole, With accessories
  • Pneumatic connection port 1: QS-6
  • Pneumatic connection port 3: Open silencer
  • Vacuum connection: QS-6
  • Material: Nickel-plated brass, NBR seals, POM receiver nozzle, POM-reinforced housing, PE silencer, Wrought aluminium alloy transmitter nozzle, Brass fitting (Nickel-plated)
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-05-N-T3-PQ2-VQ2-RO1
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£37.61
