547696

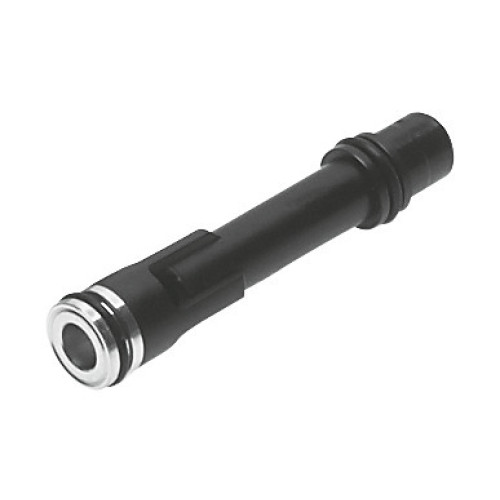

VN-07-L Vacuum generator cartridge

Manufacturer's No: VN-07-L     Manufacturer: Festo
VN-07-L Vacuum generator cartridge

Availability On Request

£25.61
  • Vacuum generator cartridge VN-07-L for VN vacuum generators with high suction rate
  • Nominal size of Laval nozzle: 0.7 mm
  • Ejector characteristic options: Standard and High suction volume
  • Operating pressure range: 1 - 8 bar, with nominal operating pressure at 6 bar
  • Max. suction flow rate against atmosphere: 30.9 L/min
  • Air supply time at nominal operating pressure: 0.82 seconds
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Temperature ranges: Media 0°C to 60°C, Ambient 0°C to 60°C

Read more

  • Product weight: 1.65 g
  • Material: Seals - NBR, Receiver nozzle - POM, Transmitter nozzle - Wrought aluminium alloy


Product

Manufacturer Material ID -
VN-07-L
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84149000
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£25.61
