526109

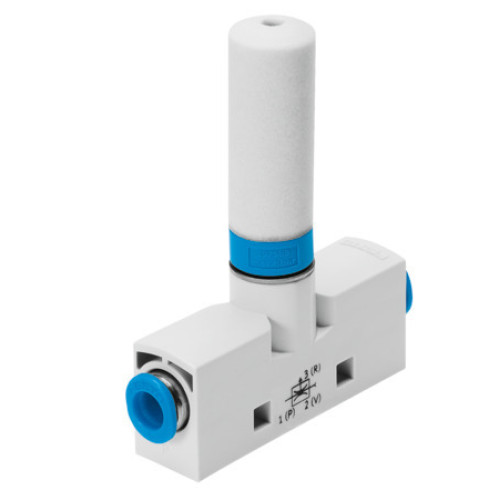

VN-07-M-T2-PQ1-VQ1-RO1 Vacuum generator

Manufacturer's No: VN-07-M-T2-PQ1-VQ1-RO1     Manufacturer: Festo
VN-07-M-T2-PQ1-VQ1-RO1 Vacuum generator

Availability On Request

£39.41
  • Vacuum generator model: VN-07-M-T2-PQ1-VQ1-RO1
  • In-line design with a width of 10 mm
  • Nominal size of Laval nozzle: 0.7 mm
  • Grid dimension: 10 mm
  • Open silencer design
  • Mounting position: Any
  • Ejector characteristic: High vacuum, Inline
  • Operating pressure for max. suction flow rate: 7 BAR
  • Max. vacuum: 86%
  • Nominal operating pressure: 6 BAR

Read more

  • Max. suction flow rate against atmosphere: 13.5 L/min
  • Air supply time at nominal operating pressure: 2.1 seconds
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature range: 0°C to 60°C
  • Sound pressure level at nominal operating pressure: 59 dBA
  • Ambient temperature range: 0°C to 60°C
  • Product weight: 15 g
  • Max. tightening torque: 0.5 Nm
  • Type of mounting: With through-hole, With accessories
  • Pneumatic connection ports: QS-4
  • Vacuum connection: QS-4
  • RoHS-compliant materials
  • Seals material: NBR
  • Receiver nozzle material: POM
  • Housing material: POM-reinforced
  • Silencer material: PE
  • Transmitter nozzle material: Wrought aluminium alloy
  • Fitting materials: Brass, Nickel-plated


Product

Manufacturer Material ID -
VN-07-M-T2-PQ1-VQ1-RO1
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
