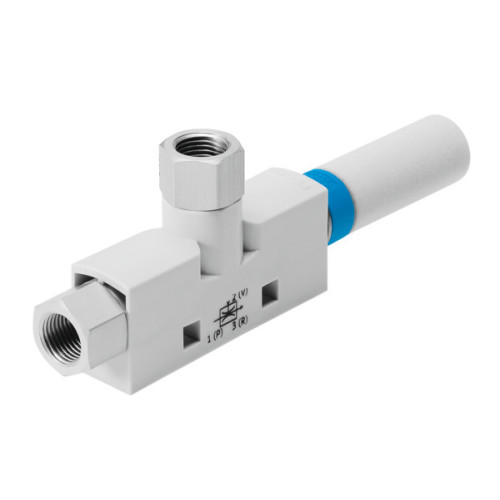

VN-10-L-T3-PI4-VI4-RO1 Vacuum generator

Manufacturer's No: VN-10-L-T3-PI4-VI4-RO1     Manufacturer: Festo
VN-10-L-T3-PI4-VI4-RO1 Vacuum generator

Availability On Request

£40.82
  • Vacuum generator model: VN-10-L-T3-PI4-VI4-RO1
  • High suction rate with a width of 14 mm
  • T-shaped design with a female thread and open silencer
  • Nominal size Laval nozzle: 0.95 mm
  • Grid dimension: 14 mm
  • Operating pressure for max. suction flow rate: 4 BAR
  • Operating pressure range: 1 BAR to 8 BAR
  • Max. suction flow rate against atmosphere: 62.7 L/min
  • Air supply time at nominal operating pressure: 0.46 seconds
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature range: 0°C to 60°C
  • Sound pressure level at nominal operating pressure: 73 dBA
  • Ambient temperature range: 0°C to 60°C
  • Product weight: 24 g
  • Pneumatic connection port 1: G1/8
  • Vacuum connection: G1/8
  • Material connecting thread: Anodised wrought aluminium alloy and nickel-plated brass
  • Material seals: NBR
  • Material receiver nozzle: POM
  • Material housing: POM-reinforced
  • Material silencer: PE
  • Material transmitter nozzle: Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-10-L-T3-PI4-VI4-RO1
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
