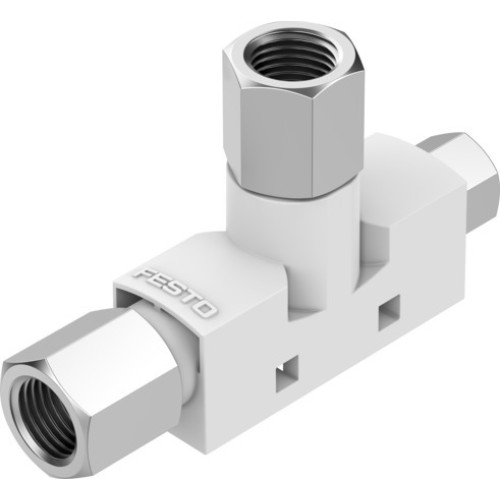

VN-14-H-T4-PI4-VI5-RI5 Vacuum generator

Manufacturer's No: VN-14-H-T4-PI4-VI5-RI5     Manufacturer: Festo
VN-14-H-T4-PI4-VI5-RI5 Vacuum generator

Availability On Request

£38.87
  • Vacuum generator model: VN-14-H-T4-PI4-VI5-RI5
  • Type: Standard, high vacuum
  • Width: 18 mm
  • Nozzle size: 1.4 mm
  • Grid dimension: 18 mm
  • Ejector characteristic: High vacuum, Standard
  • Design: T-shaped
  • Operating pressure for max. suction flow rate: 5.1 bar
  • Operating pressure range: 1 bar to 8 bar
  • Max. vacuum: 88%

Read more

  • Nominal operating pressure: 6 bar
  • Max. suction flow rate against atmosphere: 51.6 L/min
  • Air supply time at nominal operating pressure: 0.5 s
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Temperature range: 0°C to 60°C
  • Max. tightening torque: 0.5 Nm
  • Product weight: 36 g
  • Type of mounting: With through-hole, With accessories
  • Pneumatic connection ports: G1/8, G1/4
  • Vacuum connection: G1/4
  • Material: Anodised wrought aluminium alloy
  • Material seals: NBR
  • Material receiver nozzle: POM
  • Material housing: POM-reinforced
  • Material transmitter nozzle: Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-14-H-T4-PI4-VI5-RI5
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
