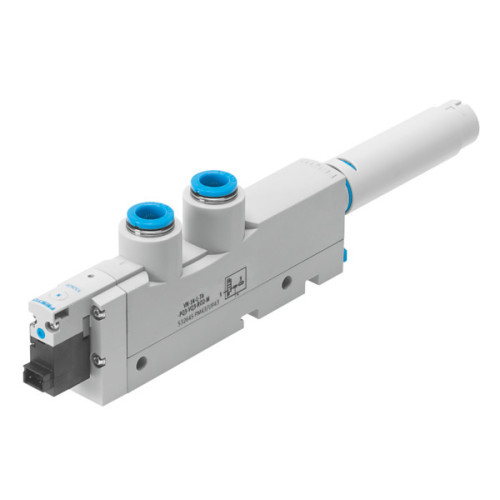

VN-14-H-T4-PQ3-VQ3-RO2-M Vacuum generator

Manufacturer's No: VN-14-H-T4-PQ3-VQ3-RO2-M     Manufacturer: Festo
VN-14-H-T4-PQ3-VQ3-RO2-M Vacuum generator

Availability On Request

£131.28
  • Vacuum generator model: VN-14-H-T4-PQ3-VQ3-RO2-M
  • Built-in solenoid valve
  • Compact design: 18mm width, T-shape with plug connector and open silencer
  • Nominal size Laval nozzle: 1.4mm
  • Grid dimension: 18mm
  • Ejector characteristics: Standard and high vacuum
  • Operating pressure: 2 BAR to 8 BAR
  • Max. vacuum: 92%
  • Max. suction flow rate against atmosphere: 48.8 L/min
  • Electrical power consumption: 1.2W

Read more

  • Duty cycle: 100%
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Corrosion resistance class: Low corrosion stress (CRC 1)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Media temperature: 0°C to 50°C
  • Sound pressure level: 69 dBA
  • Degree of protection: IP40
  • Product weight: 98g
  • Electrical connection: Plugs
  • Type of mounting: With through-hole, H-rail, and accessories
  • Pneumatic connections: Port 1 (QS-8), Port 3 (Open silencer)
  • Material: Anodised wrought aluminium alloy, NBR seals, POM receiver nozzle, PA-reinforced and POM-reinforced housing, PU foam silencer, steel screws, brass and nickel-plated fittings
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-14-H-T4-PQ3-VQ3-RO2-M
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£131.28
