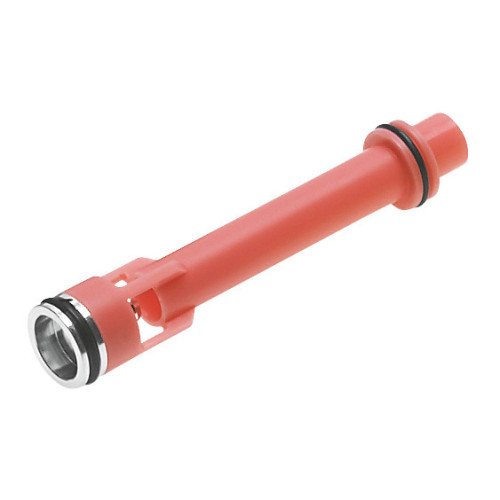

VN-14-L Vacuum generator cartridge

Manufacturer's No: VN-14-L     Manufacturer: Festo
VN-14-L Vacuum generator cartridge

Availability On Request

£33.05
  • Vacuum generator cartridge VN-14-L for VN vacuum generators with high suction rate
  • Nominal size of Laval nozzle: 1.4 mm
  • Ejector characteristics: Standard and High suction volume
  • Operating pressure range: 1 - 8 bar, with nominal operating pressure at 6 bar
  • Max. suction flow rate against atmosphere: 92.6 L/min
  • Air supply time at nominal operating pressure: 0.31 seconds
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Temperature ranges: Media temperature from 0°C to 60°C, Ambient temperature from 0°C to 60°C

Read more

  • Product weight: 3.75 g
  • Material: Seals made of NBR, receiver nozzle made of POM, transmitter nozzle made of wrought aluminium alloy


Product

Manufacturer Material ID -
VN-14-L
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84149000
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£33.05
