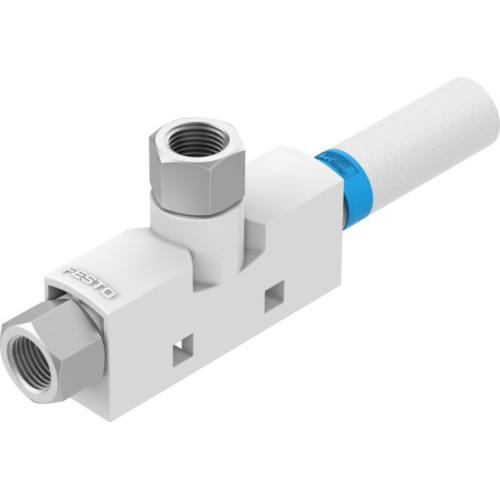

VN-14-L-T4-PI4-VI5-RO2 Vacuum generator

Manufacturer's No: VN-14-L-T4-PI4-VI5-RO2     Manufacturer: Festo
VN-14-L-T4-PI4-VI5-RO2 Vacuum generator

Availability On Request

£56.18
  • Vacuum generator VN-14-L-T4-PI4-VI5-RO2
  • High suction rate
  • Width: 18 mm
  • T-shape design with female thread and open silencer
  • Nominal size Laval nozzle: 1.4 mm
  • Grid dimension: 18 mm
  • Operating pressure for max. suction flow rate: 8 BAR
  • Max. suction flow rate against atmosphere: 90 L/min
  • Air supply time at nominal operating pressure: 0.25 s
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Media temperature range: 0°C to 60°C
  • Sound pressure level at nominal operating pressure: 77 dBA
  • Ambient temperature range: 0°C to 60°C
  • Product weight: 40 g
  • Max. tightening torque: 0.5 Nm
  • Type of mounting: With through-hole and accessories
  • Pneumatic connection port 1: G1/8
  • Pneumatic connection port 3: Open silencer
  • Vacuum connection: G1/4
  • Material connecting thread: Anodised wrought aluminium alloy
  • Material seals: NBR
  • Material receiver nozzle: POM
  • Material housing: POM-reinforced
  • Material silencer: Die-cast aluminium, POM, PU foam
  • Material transmitter nozzle: Wrought aluminium alloy


Product

Manufacturer Material ID -
VN-14-L-T4-PI4-VI5-RO2
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
