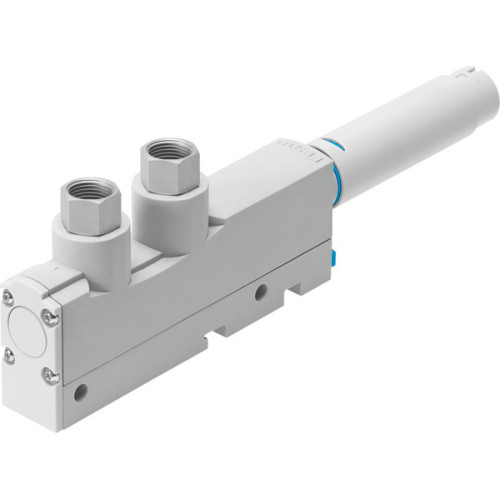

VN-14-L-T4-PI5-VI5-RO2-A Vacuum generator

Manufacturer's No: VN-14-L-T4-PI5-VI5-RO2-A     Manufacturer: Festo
VN-14-L-T4-PI5-VI5-RO2-A Vacuum generator

Availability On Request

£136.78
  • Vacuum generator VN-14-L-T4-PI5-VI5-RO2-A with ejector pulse
  • Standard design with high suction rate, T-shape, and 18mm width
  • Laval nozzle size: 1.4mm, Grid dimension: 18mm
  • Open silencer design for reduced noise
  • Mounting position: Any
  • Ejector characteristics: Standard and high suction volume
  • Integrated functions: Ejector pulse valve and open silencer
  • Operating pressure: 1 BAR (min), 6 BAR (nominal), 8 BAR (max)
  • Max. suction flow rate against atmosphere: 92.6 L/min
  • Air supply time at nominal pressure: 0.28 seconds

Read more

  • Operating medium: Compressed air per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Media temperature range: 0°C to 60°C
  • Recommended cleaning: Soapy water
  • Sound pressure level at nominal pressure: 69 dBA
  • Ambient temperature range: 0°C to 60°C
  • Max. tightening torque: 0.5 Nm
  • Product weight: 94g
  • Type of mounting: With through-hole, H-rail, or accessories
  • Pneumatic connections: Port 1 (G1/4), Port 3 (Open silencer)
  • Vacuum connection: G1/4
  • Material: Anodised wrought aluminium alloy for connecting thread, RoHS-compliant
  • Seals: NBR, Receiver nozzle: POM, Housing: PA-reinforced and POM-reinforced
  • Silencer material: Wrought aluminium alloy, POM, PU foam
  • Screws: Steel, Transmitter nozzle: Wrought aluminium alloy


Product

Manufacturer Material ID -
VN-14-L-T4-PI5-VI5-RO2-A
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
