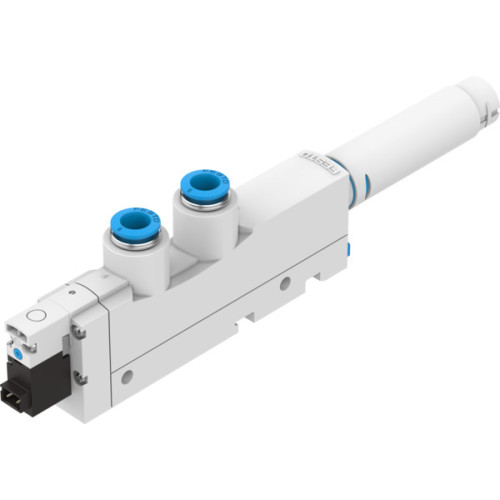

VN-14-L-T4-PQ3-VQ3-RO2-B Vacuum generator

Manufacturer's No: VN-14-L-T4-PQ3-VQ3-RO2-B     Manufacturer: Festo
VN-14-L-T4-PQ3-VQ3-RO2-B Vacuum generator

Availability On Request

£185.52
  • Vacuum generator model: VN-14-L-T4-PQ3-VQ3-RO2-B
  • Ejector pulse with built-in solenoid valve
  • Standard and high suction volume options
  • Nominal size Laval nozzle: 1.4 mm
  • Grid dimension: 18 mm
  • T-shape design with plug connector and open silencer
  • Operating pressure: 2 to 8 BAR
  • Max. suction flow rate against atmosphere: 92.6 L/min
  • Air supply time at nominal pressure: 0.32 s
  • Electrical power consumption: 1.2 W

Read more

  • Duty cycle: 100%
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Media temperature: 0 to 50°C
  • Sound pressure level at nominal pressure: 69 dBA
  • Degree of protection: IP40
  • Ambient temperature: 0 to 50°C
  • Product weight: 100 g
  • Electrical connection: Plugs
  • Type of mounting: With through-hole, H-rail, or accessories
  • Pneumatic connection: Port 1 (QS-8), Port 3 (Open silencer)
  • Vacuum connection: QS-8
  • Materials: Anodised wrought aluminium alloy, NBR seals, POM receiver nozzle, PA-reinforced and POM-reinforced housing, Wrought aluminium alloy, POM, and PU foam silencer, Steel screws, Brass and Nickel-plated fitting
  • RoHS-compliant


Product

Manufacturer Material ID -
VN-14-L-T4-PQ3-VQ3-RO2-B
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£185.52
