532656

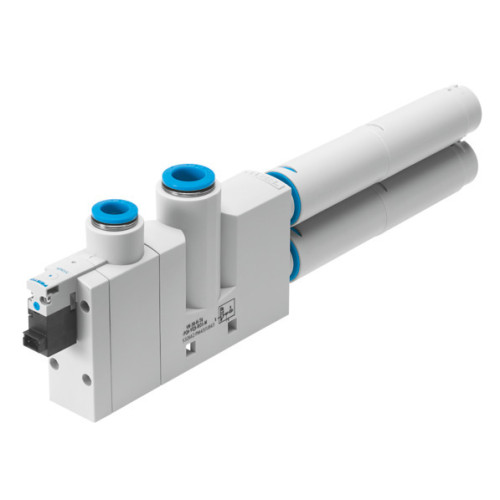

VN-20-H-T6-PQ4-VQ5-RO2-M Vacuum generator

Manufacturer's No: VN-20-H-T6-PQ4-VQ5-RO2-M     Manufacturer: Festo
VN-20-H-T6-PQ4-VQ5-RO2-M Vacuum generator

Availability On Request

£193.47
  • Vacuum generator model: VN-20-H-T6-PQ4-VQ5-RO2-M
  • Built-in solenoid valve
  • Compact design: 24mm width, T shape with plug connector
  • Laval nozzle size: 2mm
  • Grid dimension: 24mm
  • Open silencer design
  • Ejector characteristics: Standard and high vacuum
  • Operating pressure: 2 BAR to 8 BAR
  • Max. vacuum: 92%
  • Max. suction flow rate against atmosphere: 98 L/min

Read more

  • Electrical power consumption: 1.2W
  • Duty cycle: 100%
  • Operational voltage range DC: 21.6V to 26.4V
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Corrosion resistance class: Low corrosion stress
  • Sound pressure level: 63 dBA
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Product weight: 215g
  • Electrical connection: Plugs
  • Type of mounting: With through-hole and accessories
  • Pneumatic connections: Port 1 (QS-10), Port 3 (Open silencer), Vacuum connection (QS-12)
  • Materials: Anodised wrought aluminium alloy, NBR seals, POM receiver nozzle, PA-reinforced and POM-reinforced housing, Wrought aluminium alloy, POM, and PU foam silencer, Steel screws, Brass and Nickel-plated fitting
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VN-20-H-T6-PQ4-VQ5-RO2-M
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
