3803490

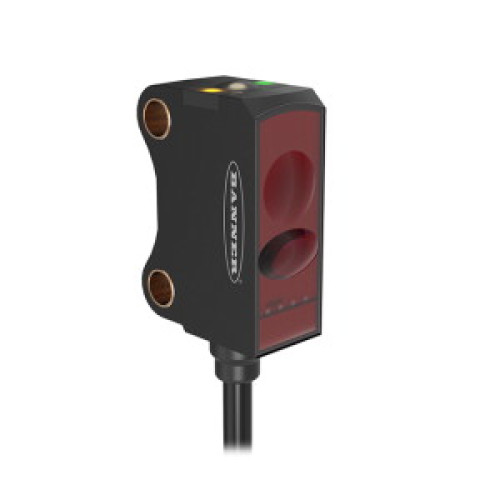

VS8 Series: Blue LED Fixed Field, Range: 2 to 30, Input: 10-30 V dc, Output: PNP, 3-pin M8 200 Pigtail

Manufacturer's No: VS8APFF30BQ3     Manufacturer: Turck Banner
VS8 Series: Blue LED Fixed Field, Range: 2 to 30, Input: 10-30 V dc, Output: PNP, 3-pin M8 200 Pigtail

Availability On Request

£216.86
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 30 mm
  • Cable length: 0.2 m, connection via 200 m cable
  • PUR with M8 male connector
  • LED emitter (blue)
  • PNP switching output with NO contact


Product

Manufacturer Material ID -
VS8APFF30BQ3
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39121534

Technical Specification

Adjustment range -
2 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
25.7 Millimetre
Housing material -
Plastic
Length of sensor -
14.6 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. switching distance -
30 Millimetre
Rated switching distance -
30 Millimetre
Reaction time -
0.5 Millisecond
Type of electric connection -
Connector M8
Type of light -
Blue light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
450 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability On Request

£216.86
