3803484

VS8 Series: Laser Receiver, Range: 3 m, Input: 10-30 V dc, Output: PNP, 4-conductor 2 m Cable

Manufacturer's No: VS8EAPR     Manufacturer: Turck Banner
VS8 Series: Laser Receiver, Range: 3 m, Input: 10-30 V dc, Output: PNP, 4-conductor 2 m Cable

Availability On Request

£176.03
  • Photoelectric sensor in opposed mode
  • Operating voltage: 10-30 VDC
  • Max. range: 3000 mm
  • Cable length: 2 m, PUR material
  • ECOLAB-certified
  • Setting via pushbutton
  • Teach input for easy configuration
  • PNP switching output with NO contact
  • Switchable sensor


Product

Manufacturer Material ID -
VS8EAPR
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39121534

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

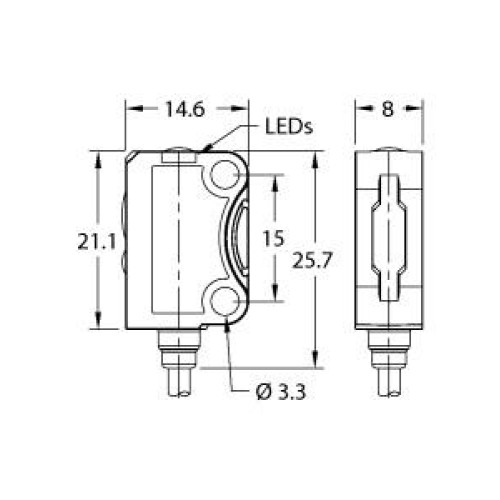

Height of sensor -
25.7 Millimetre
Housing material -
Plastic
Length of sensor -
14.6 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Rated switching distance -
3000 Millimetre
Reaction time -
0.5 Millisecond
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
650 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability On Request

£176.03
