3803486

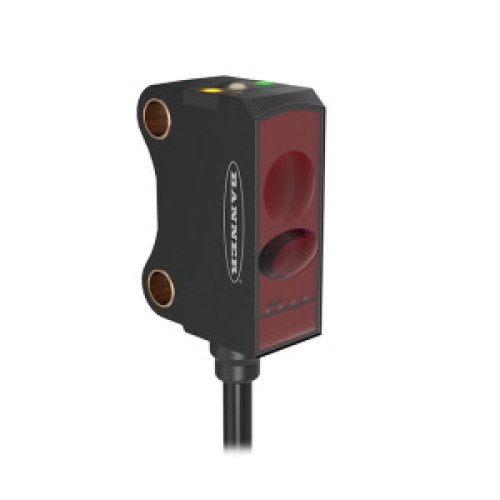

VS8 Series: Laser Receiver, Range: 3 m, Input: 10-30 V dc, Output: PNP, 200 4-pin M8 Pigtail QD

Manufacturer's No: VS8EAPRQ     Manufacturer: Turck Banner
VS8 Series: Laser Receiver, Range: 3 m, Input: 10-30 V dc, Output: PNP, 200 4-pin M8 Pigtail QD

Availability On Request

£183.29
  • Photoelectric sensor in opposed mode
  • Operating voltage: 10-30 VDC
  • Max. range: 3000 mm
  • Cable length: 0.2 m
  • Connection via 200 m PUR cable with M8 male connector
  • Setting via pushbutton
  • Teach input feature
  • PNP switching output with NO contact
  • Switchable sensor


Product

Manufacturer Material ID -
VS8EAPRQ
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39121534

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

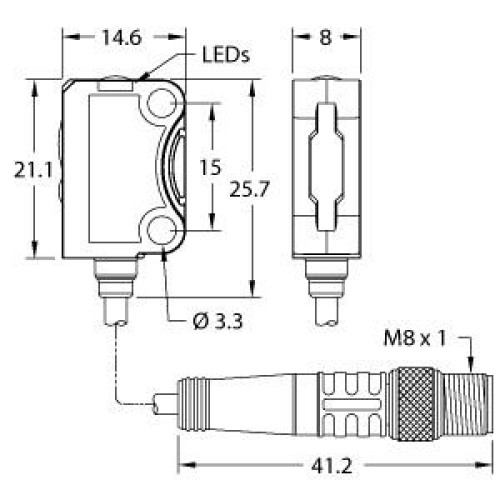

Height of sensor -
25.7 Millimetre
Housing material -
Plastic
Length of sensor -
14.6 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Rated switching distance -
3000 Millimetre
Reaction time -
0.5 Millisecond
Type of electric connection -
Connector M8
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
650 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability On Request

£183.29
