7TCA091720R0192

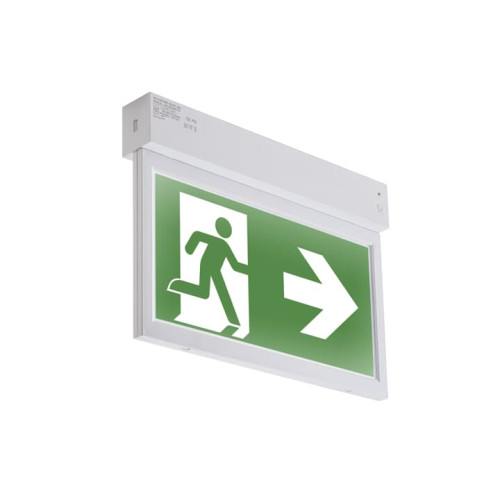

PRIMEVO EXIT SIGN 200 ST

Manufacturer's No: XT200ST     Manufacturer: ABB
PRIMEVO EXIT SIGN 200 ST

Availability On Request

£49.94
  • PRIMEVO EXIT SIGN 200 ST
  • Self-contained luminaire for escape route signage
  • Configurable pictograms included
  • Wall and ceiling surface mounted
  • Uniform luminance of signage
  • System consumption: 3.5 Watts
  • 3 years warranty (excluding battery)


Product

Manufacturer Material ID -
XT200ST
Net Weight -
1.04kg

Additional Product Information

Commodity Code -
9405490000
Country of Origin -
CN
UNSPSC -
39122330

Technical Specification

Wiring system -
Continuous circuit/emergency circuit
Lamp included -
Energy efficiency class of integrated lamp -
A++, A+, A (LED)
Battery chemistry -
NiCd
Colour temperature -
5700 Kelvin
Conductor cross section -
1.5 Square millimetre
Connection type -
Other
Control gear -
LED driver constant current
Cover material -
Plastic matt/satinised
Degree of protection (IP rating) -
IP20
Function -
Escape route signage
Height/depth -
265 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK10
Labelling type -
Sticker
Length -
265 Millimetre
Light distribution -
Other
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
22 Lumen
Maximum system power -
2.4 Watt
Monitoring equipment -
Automatic self test
Mounting method -
Wall surface mounted / ceiling surface mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lamps -
1
Number of lighting heads -
1
Number of poles -
3
Pictogram included -
Power factor -
0.6
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
-5 Degrees celsius
Rated luminous flux acc. IEC 62722-2-1 -
22 Lumen
Type of cabling -
Suitable for through wiring
Type of indicator -
Single/double-sided
Viewing distance -
24 Metre
Voltage type -
AC
Width -
45 Millimetre
With remote control -
ABB

Availability On Request

£49.94
