2CPX063169R9999

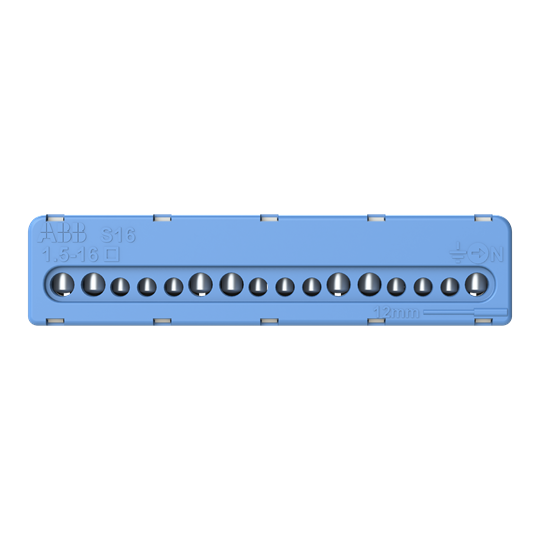

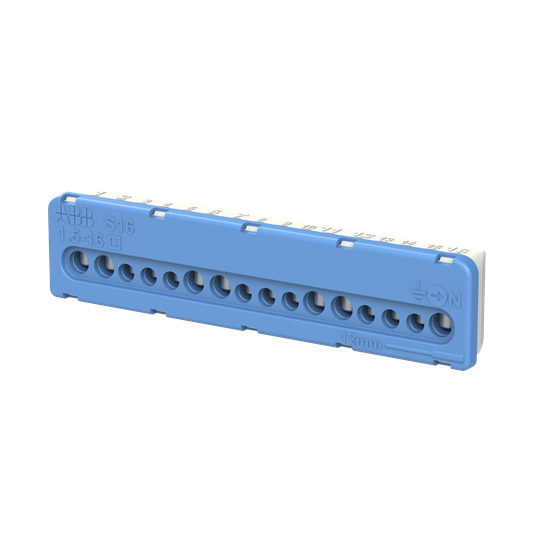

ZKS16B Enclosure accessories , Direct mounting, Dimensions: 27 mm x 116 mm x 21 mm

Manufacturer's No: ZKS16B     Manufacturer: ABB
ZKS16B Enclosure accessories , Direct mounting, Dimensions: 27 mm x 116 mm x 21 mm

Availability On Request

£14.56
  • Enclosure accessories for ZKS16B
  • Direct mounting
  • Dimensions: 27 mm x 116 mm x 21 mm
  • N screw type terminal for plug-in carrier
  • Assembly without tools using simple plug-in and latching equipment
  • Clear color-coding: N = blue
  • Flexible terminal system for multiple N-circuits
  • Number of terminals: 7 x 16 mm² + 9 x 6 mm² (screw connection technology)


Product

Manufacturer Material ID -
ZKS16B
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
NL
UNSPSC -
39122330

Technical Specification

Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0 Square millimetre
Depth -
21 Millimetre
Height -
27 Millimetre
Material insulation body -
Thermoplastic
Mounting method -
Direct mounting
Number of clamp positions per pole -
1616
Number of poles -
1
Operating temperature -
55 Degrees celsius
Rated current In -
100 Ampere
Width -
116 Millimetre
ABB

Availability On Request

£14.56
