2006-1671/1000-849

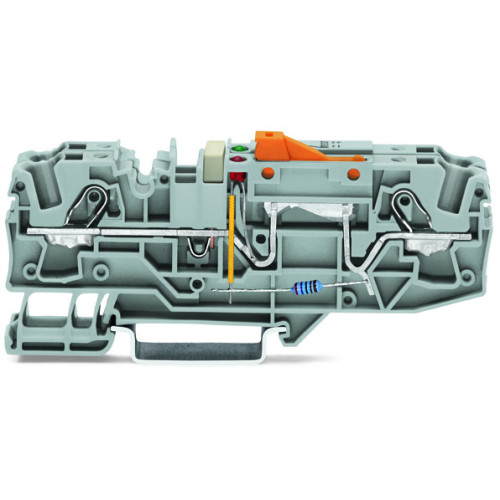

Ground conductor disconnect terminal block, with test option, with orange disconnect link, gray

Manufacturer's No: 2006-1671/1000-849     Manufacturer: WAGO
Ground conductor disconnect terminal block, with test option, with orange disconnect link, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Ground conductor disconnect terminal block
  • Test option included
  • Orange disconnect link for easy identification
  • Voltage: 48 V
  • Conductor size: 6 mm²
  • Connection type: Push-in CAGE CLAMP®
  • Color: Gray

Accessories

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.82
On Request

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.01
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-262
Price £0.09
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-263
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-264
Price £0.09
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-266
Price £0.09
On Request

Ferrule, Sleeve for 4 mm² / AWG 12, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-267
Price £0.09
On Request

Ferrule, Sleeve for 6 mm² / AWG 10, insulated, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-208
Price £0.16
In Stock

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.15
On Request

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.15
On Request

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.15
On Request

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.15
On Request

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.15
On Request

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £3.96
On Request

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.15
On Request

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.15
On Request

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.15
On Request

Adaptor, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-198
Price £0.25
List Price £0.25
On Request

End and intermediate plate, 1 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-1692
Price £0.47
List Price £0.47
On Request

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-192
Price £0.25
List Price £0.25
On Request

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-193
Price £0.26
List Price £0.26
On Request

Adaptor, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-121
Price £0.26
List Price £0.26
In Stock

Lockout cap, for wire insertion and actuating opening, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-191
Price £0.36
List Price £0.36
On Request


Product

Manufacturer Material ID -
2006-1671/1000-849
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Length -
96.3 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
15 Millimetre
Height at lowest possible mounting height -
37 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Depth -
36.8 Millimetre
Height -
96.3 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
30 Ampere
Rated voltage -
500 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Type of slitting -
None
Width -
15 Millimetre
