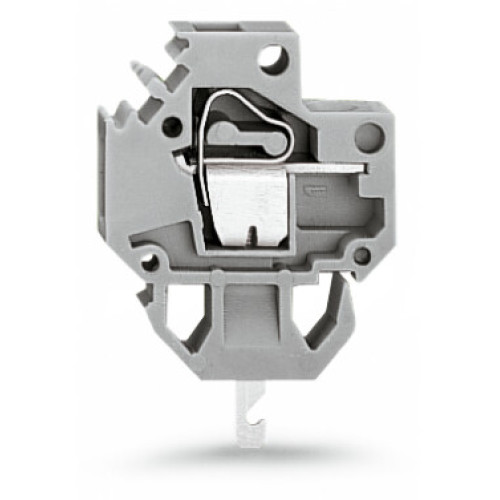

226-104

Feedthrough terminal block, Conductor/solder/crimp quick disconnect terminal, Plate thickness: 1.5 mm, gray

Manufacturer's No: 226-104     Manufacturer: WAGO
Feedthrough terminal block, Conductor/solder/crimp quick disconnect terminal, Plate thickness: 1.5 mm, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Feedthrough terminal block
  • Conductor/solder/crimp quick disconnect terminal
  • Plate thickness: 1.5 mm
  • Pin spacing: 6 mm
  • 1-pole
  • CAGE CLAMP® technology
  • Conductor size: 4.00 mm²
  • Color: Gray

Accessories

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-242
Price £0.09
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-262
Price £0.09
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-263
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-244
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-264
Price £0.09
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-246
Price £0.09
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-266
Price £0.09
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-286
Price £0.15
On Request

End plate, for 400 V, cut-out dimensions L1, 1.5 mm thick, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 226-120
Price POA
On Request

Ferrule, Sleeve for 0.5 mm² / 20 AWG, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-141
Price £0.02
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-143
Price £0.02
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-106
Price £0.02
On Request

Spacer, for plate thickness 1.5 mm, 6 mm wide, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 226-109
Price POA
On Request

Spacer, for plate thickness 2.5 mm, 6 mm wide, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 226-119
Price POA
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-142
Price POA
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-144
Price POA
On Request


Product

Manufacturer Material ID -
226-104
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Dimension vertical to mounting plate inner side -
- Millimetre
Dimension parallel to mounting plate inner side -
- Millimetre
Dimension vertical to mounting plate outer side -
- Millimetre
Dimension parallel to mounting plate outer side -
- Millimetre
Operation temperature -
105 Degrees celsius
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Connection position -
Sideways
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
20 Ampere
Rated voltage -
320 Volt
Thickness of mounting plate -
1.5 Millimetre
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width/grid dimension -
6 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
