250-404/353-604

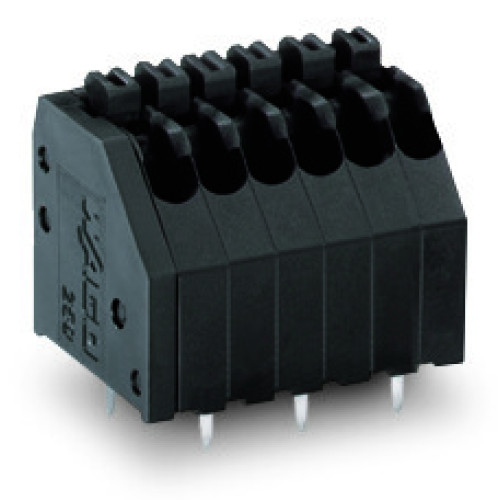

THR PCB terminal block, push-button, 0.5 mm², black

Manufacturer's No: 250-404/353-604     Manufacturer: WAGO
THR PCB terminal block, push-button, 0.5 mm², black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • THR PCB terminal block
  • Push-button design
  • Wire size capacity: 0.5 mm²
  • Pin spacing: 2.5 mm
  • 4-pole configuration
  • Features Push-in CAGE CLAMP® technology
  • Color: black

Accessories

Marking strips, as a DIN A4 sheet, MARKED, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 210-331/250-207
Price POA
On Request


Product

Manufacturer Material ID -
250-404/353-604
Net Weight -
0.75kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Angle PCB/conductor connection -
45°/135° (downwards inclined)
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Connection type conductor -
Spring clamp connection
Connection type PCB -
THR connection
Height -
13.1 Millimetre
Housing colour -
Black
Inflammability class of insulation material acc. with UL94 -
V2
Length pin -
2.4 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
2.5 Millimetre
Number of electrical connections -
4
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
4 Ampere
Rated surge voltage -
2.5 Kilovolt
Rated voltage -
160 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
