253-112

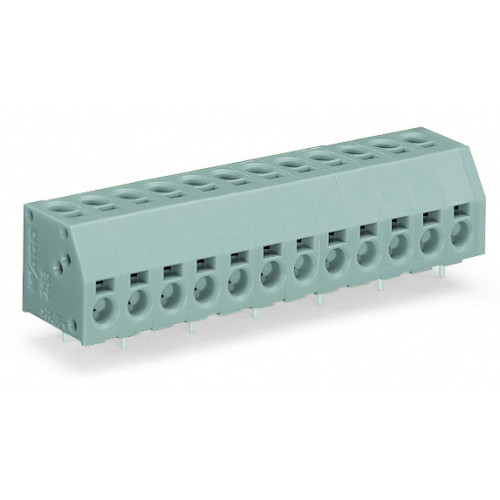

2-conductor PCB terminal block 1.5 mm Pin spacing 5 mm 12-pole gray

Manufacturer's No: 253-112     Manufacturer: WAGO
2-conductor PCB terminal block 1.5 mm Pin spacing 5 mm 12-pole gray

Availability Back Order

POA
  • 2-conductor PCB terminal block
  • 12-pole with pin spacing of 5 mm
  • Rated for 1.5 mm² wire size
  • Features PUSH WIRE® connection technology
  • Color: gray

Accessories



Product

Manufacturer Material ID -
253-112
Net Weight -
0.76kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
CN
UNSPSC -
39121410

Technical Specification

Diameter connection pin -
- Millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Grey
Operation temperature -
-60 Degrees celsius
Angle PCB/conductor connection -
Other
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connection type conductor -
Plug clamp connection
Connection type PCB -
Soldering connection
Height -
13 Millimetre
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
3.6 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
5 Millimetre
Number of electrical connections -
12
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
17.5 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
320 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

POA
