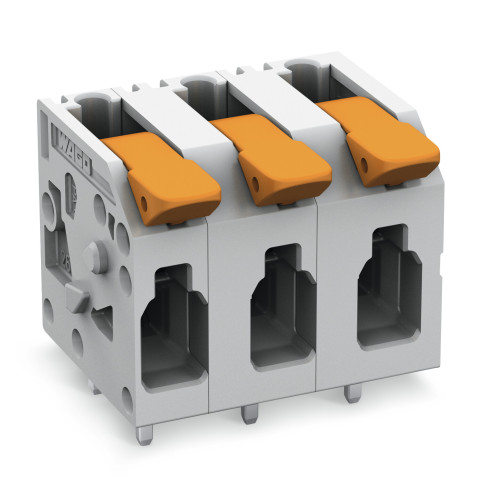

2604-1303

PCB terminal block; operating lever; 4 mm; Pin spacing 7.5 mm; 3-pole; Push-in CAGE CLAMP

Manufacturer's No: 2604-1303     Manufacturer: WAGO
PCB terminal block; operating lever; 4 mm; Pin spacing 7.5 mm; 3-pole; Push-in CAGE CLAMP

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£2.08
  • PCB terminal block with lever
  • 3-pole design
  • Rated for 4.00 mm² wire size
  • Pin spacing of 7.5 mm
  • Features Push-in CAGE CLAMP® technology
  • Color: gray

Accessories

Ferrule, Sleeve For 0.5 mm / Awg 22 Insulated White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-241
Price £0.09
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-242
Price £0.09
Back Order

Ferrule, Sleeve For 1.5 mm / Awg 16 Insulated Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-244
Price £0.09
Back Order

Ferrule, Sleeve For 2.5 mm / Awg 14 Insulated Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-246
Price £0.09
Back Order

Ferrule, Sleeve For 2.5 mm / Awg 14 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-106
Price £0.02
Back Order


Product

Manufacturer Material ID -
2604-1303
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84433990
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Diameter connection pin -
- Millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Grey
Operation temperature -
-60 Degrees celsius
Angle PCB/conductor connection -
0°/180° (horizontal)
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Connection type conductor -
Spring clamp connection
Connection type PCB -
Soldering connection
Height -
16.7 Millimetre
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
7.5 Millimetre
Number of electrical connections -
3
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
32 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
1000 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£2.08
