2624-3511

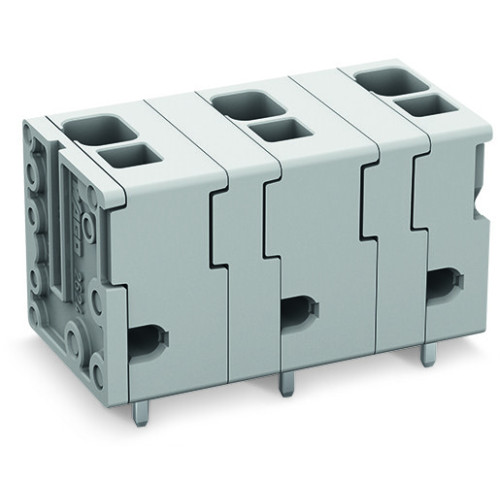

PCB terminal block, 4 mm², Pin spacing 11.5 mm, gray

Manufacturer's No: 2624-3511     Manufacturer: WAGO
PCB terminal block, 4 mm², Pin spacing 11.5 mm, gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£8.00
  • PCB terminal block
  • 11-pole
  • Pin spacing: 11.5 mm
  • Wire size: 4.00 mm²
  • Push-in CAGE CLAMP®
  • Color: Gray

Accessories

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
Back Order

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-242
Price £0.09
Back Order

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-262
Price £0.09
Back Order

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-263
Price £0.09
Back Order

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-244
Price £0.09
Back Order

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-264
Price £0.09
Back Order

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-246
Price £0.09
Back Order

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-266
Price £0.09
Back Order

Ferrule, Sleeve for 2.5 mm² / AWG 14, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-106
Price £0.02
Back Order


Product

Manufacturer Material ID -
2624-3511
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Diameter connection pin -
- Millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Grey
Operation temperature -
-60 Degrees celsius
Angle PCB/conductor connection -
90° (upwards vertical)
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Connection type conductor -
Spring clamp connection
Connection type PCB -
Soldering connection
Height -
16.3 Millimetre
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
11.5 Millimetre
Number of electrical connections -
11
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
41 Ampere
Rated surge voltage -
8 Kilovolt
Rated voltage -
1000 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact
