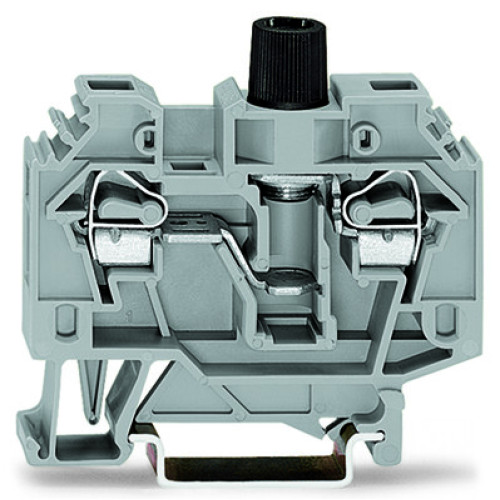

282-126

2-conductor fuse terminal block, without blown fuse indication, for DIN-rail 35 x 15 and 35 x 7.5, gray

Manufacturer's No: 282-126     Manufacturer: WAGO
2-conductor fuse terminal block, without blown fuse indication, for DIN-rail 35 x 15 and 35 x 7.5, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£8.54
  • 2-conductor fuse terminal block
  • Suitable for DIN-rail 35 x 15 and 35 x 7.5
  • CAGE CLAMP® technology
  • Maximum wire size: 6.00 mm²
  • Color: Gray

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.01
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-262
Price £0.09
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-263
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-264
Price £0.09
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-266
Price £0.09
On Request

Ferrule, Sleeve for 4 mm² / AWG 12, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-267
Price £0.09
On Request

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.15
On Request

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.15
On Request

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.15
On Request

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.15
On Request

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.15
On Request

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
On Request

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.33
On Request

Test plug adapter, 8.3 mm wide, for 4 mm Ø test plugs, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-170
Price £1.79
On Request

End and intermediate plate, 4 mm thick, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-311
Price £0.65
On Request

End and intermediate plate, 4 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-312
Price £0.57
On Request

Jumper, insulated, yellow-green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-422
Price £0.55
On Request

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-409
Price £0.91
On Request

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-143
Price £0.50
On Request

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.15
On Request

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.15
On Request

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.15
On Request

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-144
Price £0.50
On Request

B-type test plug module, modular, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-147
Price £2.07
On Request

Test plug, 6 mm wide, Nominal current 24 A, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-407
Price £1.47
On Request

Miniature metric fuse, with indicator, 5 x 25 mm

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-452
Price £3.75
On Request

Miniature metric fuse, with indicator, 5 x 25 mm

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-453
Price £5.65
On Request

Wire commoning chain, 2.5 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 709-111
Price POA
On Request


Product

Manufacturer Material ID -
282-126
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CN
UNSPSC -
32151705

Technical Specification

Supply voltage for defect-indication -
- Volt
Voltage type for defect indication -
UN
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
62 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
13 Millimetre
Height at lowest possible mounting height -
54.5 Millimetre
Connection position -
Sideways
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
54.5 Millimetre
Height -
62 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
10 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Type of fuse holder -
Screw fix
Type of fuse insert -
G-fuse 5x25 mm
Type of indication element for defect indication -
None
Width -
13 Millimetre
