284-624

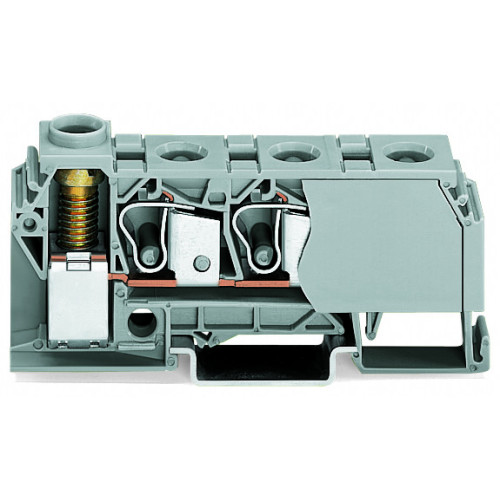

Distribution Terminal Block, 3 X Cage Clamp Connection 10 mm 1 X Screw-Clamp Connection 35 mm

Manufacturer's No: 284-624     Manufacturer: WAGO
Distribution Terminal Block, 3 X Cage Clamp Connection 10 mm 1 X Screw-Clamp Connection 35 mm

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£13.77
  • Distribution terminal block
  • Suitable for DIN-rail 35 x 15 and 35 x 7.5
  • Lateral marker slots
  • Screw-type and CAGE CLAMP® connections
  • 3 x CAGE CLAMP® connections for 10 mm² wires
  • 1 x screw-clamp connection for 35 mm² wires
  • Blue color
  • Maximum wire size: 10.00 mm²

Accessories

Ferrule, Sleeve For 0.75 mm / Awg 20 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-262
Price £0.09
Back Order

Ferrule, Sleeve For 1 mm / Awg 18 Insulated Red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Back Order

Ferrule, Sleeve For 1.5 mm / Awg 16 Insulated Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-264
Price £0.09
Back Order

Ferrule, Sleeve For 2.5 mm / Awg 14 Insulated Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-266
Price £0.09
Back Order

Ferrule; Sleeve for 4 mm / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-267
Price £0.09
Back Order

Ferrule, Sleeve For 6 mm / Awg 10 Insulated Yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-208
Price £0.16
Back Order

Ferrule, Sleeve For 6 mm / Awg 10 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-108
Price £0.04
Back Order

Mounting Carrier, For Isolated Mounting On Din Rail Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-106
Price £0.33
Back Order

Comb-Style Jumper Bar, Insulated Nominal Current 125 A Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 284-412
Price £1.80
Back Order

Cover Carrier, Type 2 Incl. Screws With Nut Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 709-168
Price £1.92
Back Order


Product

Manufacturer Material ID -
284-624
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
IN
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
89 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
17.5 Millimetre
Height at lowest possible mounting height -
39.5 Millimetre
Connection position -
Above
Colour -
Blue
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
39.5 Millimetre
Height -
89 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Spring clamp connection
Width -
17.5 Millimetre
