3KL50301AB01

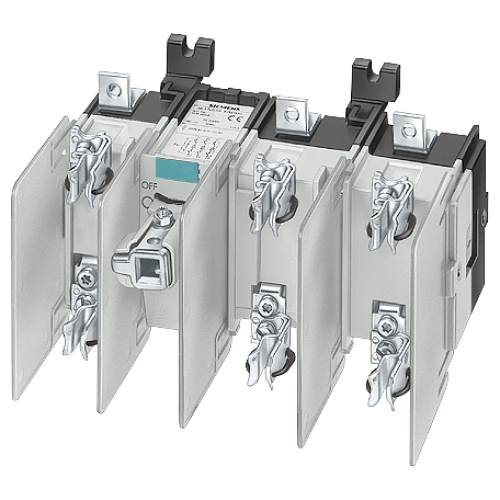

63 A, size 00 and 000, class GG, AM, 3-pole for NH fuse systems

Manufacturer's No: 3KL5030-1AB01     Manufacturer: Siemens
63 A, size 00 and 000, class GG, AM, 3-pole for NH fuse systems

Availability On Request

POA

This product has been superseded by

3KF13060MB11

Please check compatibility before purchasing.

  • Amperage: 63 A
  • Sizes: 00 and 000
  • Class: GG, AM
  • Configuration: 3-pole
  • Compatibility: NH fuse systems
  • Discontinued: 10/10/22
  • Successor: 3KF1306-0MB11
  • Note: Different dimensions and some technical values may vary.

Follow-up article



Product

Manufacturer Material ID -
3KL5030-1AB01
Net Weight -
1.01kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Rated short-time withstand current lcw -
- kiloampere
Colour control element -
UN
Rated permanent current at AC-21, 400 V -
- Ampere
Switching power at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Type of electrical connection of main circuit -
Other
Device construction -
Built-in device fixed built-in technique
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Rated operation power at AC-23, 400 V -
30 Kilowatt
Rated permanent current at AC-23, 400 V -
63 Ampere
Rated permanent current Iu -
63 Ampere
Type of control element -
Other
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3KF13060MB11

Please check compatibility before purchasing.
