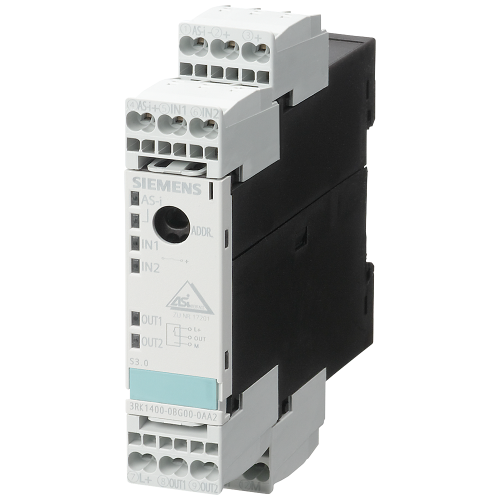

3RK14000BG000AA2

AS-i SlimLine module S22.5, digital, 2I/2Q, IP20, 2x1 inp., 2-wire, PNP

Manufacturer's No: 3RK1400-0BG00-0AA2     Manufacturer: Siemens
AS-i SlimLine module S22.5, digital, 2I/2Q, IP20, 2x1 inp., 2-wire, PNP

Availability On Request

£250.57
  • AS-i SlimLine module
  • Phased-out product
  • SC22.5 digital
  • 2 digital inputs, 2 digital outputs
  • IP20 rated
  • 2 inputs for 3-wire sensor
  • 2 outputs, 2A, 24V DC
  • Spring-type terminals
  • Overall width: 22.5mm

Follow-up article



Product

Manufacturer Material ID -
3RK1400-0BG00-0AA2
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Time delay at signal exchange -
- Millisecond
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
86 Millimetre
Height -
103 Millimetre
Input current at signal 1 -
5 Milliampere
Number of digital inputs -
2
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
2 Ampere
Short-circuit protection, outputs available -
Supporting protocol for ASI -
System accessory -
Type of digital output -
Other
Type of electric connection -
Spring clamp connection
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre

Availability On Request

£250.57
