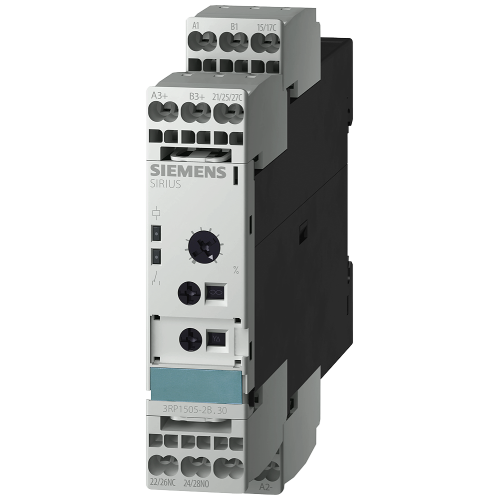

3RP15052BP30

Timing relay, Multifunction Phased-out product !!! For further information, please contact our sales

Manufacturer's No: 3RP1505-2BP30     Manufacturer: Siemens
Timing relay, Multifunction Phased-out product !!! For further information, please contact our sales

View 3D

Availability Back Order

POA

This product has been superseded by

3RP25052BW30

Please check compatibility before purchasing.

  • Timing relay
  • Phased-out product
  • Discontinued since: 01/10/21
  • Successor: 3RP2505-2BW30

Follow-up article

Product video
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RP1505-2BP30
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
With plug-in socket -
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
200 Volt
Rated control supply voltage Us at DC -
24 Volt
Depth -
91 Millimetre
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function floating contact on de-energization -
Function floating contact on energization -
Function pulse shaping -
Function star-delta -
Height -
103 Millimetre
Number of outputs, delayed, change-over contact -
2
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at AC 50 Hz -
200 Volt
Rated control supply voltage at AC 60 Hz -
200 Volt
Rated control supply voltage at DC -
24 Volt
Time range -
0.05 Second
Type of electric connection -
Spring clamp connection
Voltage type for actuating -
AC/DC
Width -
22.5 Millimetre

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

3RP25052BW30

Please check compatibility before purchasing.
