3RP20052AP30

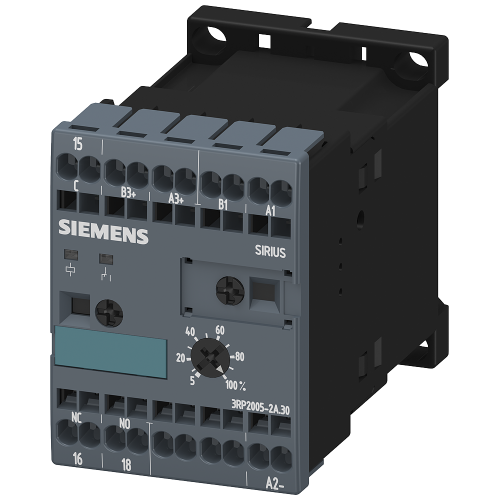

Timing relay, electronic Multifunction, 8 functions 1 change-over contact 24 V AC/DC, 200 to 240 V A

Manufacturer's No: 3RP2005-2AP30     Manufacturer: Siemens
Timing relay, electronic Multifunction, 8 functions 1 change-over contact 24 V AC/DC, 200 to 240 V A

Availability On Request

£112.01
  • Timing relay with electronic Multifunction
  • 8 functions with 1 change-over contact
  • Input: 24 V AC/DC, 200 to 240 V AC at 50/60 Hz
  • Timing range: 0.05 seconds to 100 hours
  • Overall width: 45 mm
  • Equipped with spring-type terminals

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RP2005-2AP30
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
200 Volt
Rated control supply voltage Us at DC -
24 Volt
Depth -
73 Millimetre
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function floating contact on de-energization -
Function floating contact on energization -
Function pulse shaping -
Height -
57 Millimetre
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at AC 50 Hz -
200 Volt
Rated control supply voltage at AC 60 Hz -
200 Volt
Rated control supply voltage at DC -
24 Volt
Time range -
0.05 Second
Type of electric connection -
Spring clamp connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
