3RT20252NB30

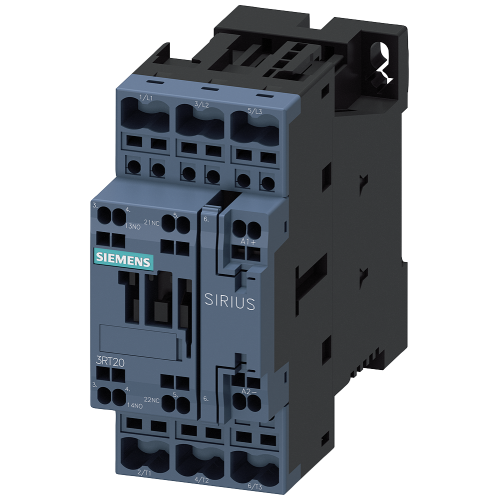

power contactor, AC-3 17 A, 7.5kW / 400 V 1 NO + 1 NC, AC (50-60 Hz) DC operation 21-28 V AC/DC, 3-

Manufacturer's No: 3RT2025-2NB30     Manufacturer: Siemens
power contactor, AC-3 17 A, 7.5kW / 400 V 1 NO + 1 NC, AC (50-60 Hz) DC operation 21-28 V AC/DC, 3-

Availability On Request

£113.34
  • Power contactor for AC-3e/AC-3 applications
  • Rated current: 17 A
  • Rated power: 7.5 kW at 400 V
  • 3-pole configuration
  • Control voltage: 21-28 V AC/DC, 50/60 Hz
  • Integrated varistor for protection
  • Auxiliary contacts: 1 NO + 1 NC
  • Spring-loaded terminal for easy installation
  • Size: S0

Accessories

Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2025-2NB30
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
21 Volt
Rated control supply voltage Us at AC 60HZ -
21 Volt
Rated control supply voltage Us at DC -
21 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
21 Volt
Rated control supply voltage at AC 60 Hz -
21 Volt
Rated control supply voltage at DC -
21 Volt
Rated operation current Ie at AC-1, 400 V -
40 Ampere
Rated operation current Ie at AC-3, 400 V -
17 Ampere
Rated operation current Ie at AC-4, 400 V -
15.5 Ampere
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Rated operation power NEMA -
7.3549875 Kilowatt
Type of electrical connection of main circuit -
Spring clamp connection
Voltage type for actuating -
AC/DC

Availability On Request

£113.34
