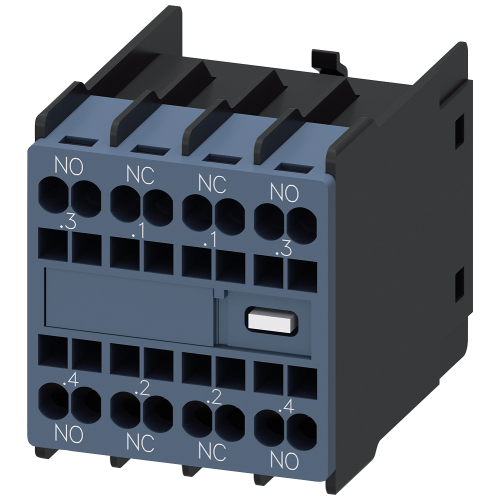

Auxiliary switch 2 NO+2 NC, current paths: 1 NO, 1 NC, 1 NC, 1 NO

3RH29112FA22

Auxiliary switch 2 NO+2 NC, current paths: 1 NO, 1 NC, 1 NC, 1 NO

Produced by Siemens

Availability In Stock

Price - £12.47
auxiliary switch, on the front, 2 NO + 2 NC, .3/.4, .1/.2, .1/.2, .3/.4, current path: 1 NO, 1 NC, 1 NC, 1 NO, spring-loaded terminal, for contactors 3RT2 and contactor relays 3RH2 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit. The front-mounted 3RH29 auxiliary switches can be installed on 3RT2 contactors and 3RH2 contactor relays without the need for tools, regardless of size. The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relays or also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal. Simple, efficient and always up to date - SIRIUS modular system.
No alternatives available for this product.
Product
Manufacturer Material ID -
3RH2911-2FA22
Net Weight -
0.06kg
Additional Product Information
Commodity Code -
85365080
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529
Technical Specification
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
