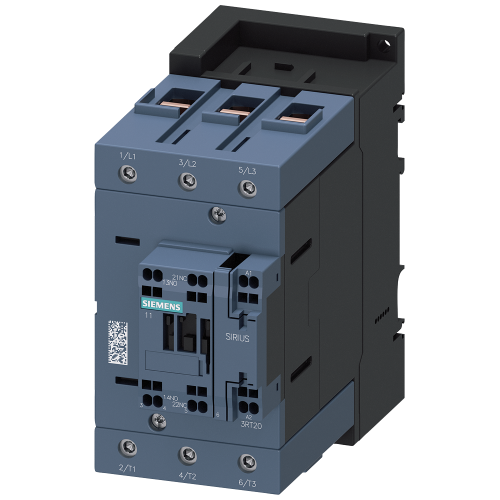

3RT20453AM20

Contactor, AC-3e, 80 A/37 kW/400 V, 3-pole, 208 V AC, 50/60 Hz, 1 NO+1 NC, screw terminal/spring-type terminal

Manufacturer's No: 3RT2045-3AM20     Manufacturer: Siemens
Contactor, AC-3e, 80 A/37 kW/400 V, 3-pole, 208 V AC, 50/60 Hz, 1 NO+1 NC, screw terminal/spring-type terminal

View 3D

Availability Back Order

£268.43
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 80 A with a power of 37 kW at 400 V
  • 3-pole contactor suitable for 208 V AC systems
  • Frequency compatibility: 50/60 Hz
  • Auxiliary contacts: 1 Normally Open + 1 Normally Closed
  • Main circuit connection: screw terminal
  • Control and auxiliary circuit connection: spring-loaded terminal
  • Size: S3

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2045-3AM20
Net Weight -
1.71kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at DC -
- Volt
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
208 Volt
Rated control supply voltage Us at AC 60HZ -
208 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
208 Volt
Rated control supply voltage at AC 60 Hz -
208 Volt
Rated operation current Ie at AC-1, 400 V -
125 Ampere
Rated operation current Ie at AC-3, 400 V -
80 Ampere
Rated operation current Ie at AC-4, 400 V -
66 Ampere
Rated operation power at AC-3, 400 V -
37 Kilowatt
Rated operation power NEMA -
44.129925 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
