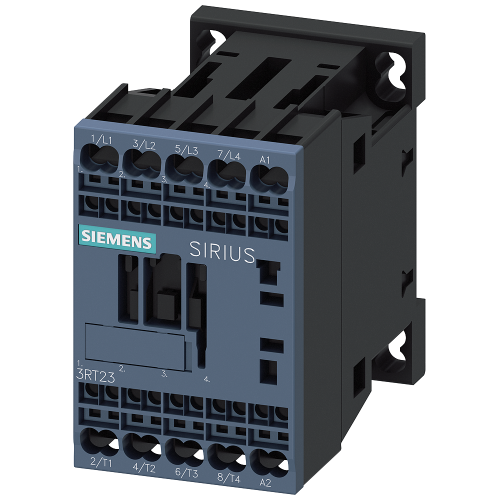

3RT23162AP001AA0

Contactor, AC-1, 18 A/400 V/40 °C, S00, 4-pole, 230 V AC, 50/60 Hz

Manufacturer's No: 3RT2316-2AP00-1AA0     Manufacturer: Siemens
Contactor, AC-1, 18 A/400 V/40 °C, S00, 4-pole, 230 V AC, 50/60 Hz

Availability On Request

£40.63
  • Contactor type: AC-1
  • Rated current: 18 A
  • Rated voltage: 400 V at 40°C
  • Configuration: 4-pole
  • Control voltage: 230 V AC, 50/60 Hz
  • Terminal type: Spring-loaded
  • Size: S00
  • Mounting position: Upright

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request
Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2316-2AP00-1AA0
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at DC -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Modular version -
Number of main contacts as normally open contact -
4
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Rated operation current Ie at AC-1, 400 V -
18 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation current Ie at AC-4, 400 V -
8.5 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power at AC-4, 400 V -
4 Kilowatt
Type of electrical connection of main circuit -
Spring clamp connection
Voltage type for actuating -
AC
