3RT23262AF00

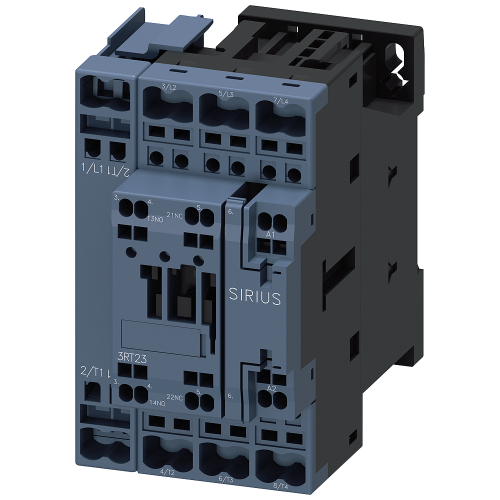

Contactor, 4 NO, AC-1: 40 A 110 V AC, 50 Hz, 4-pole, 4 NO, Size S0, Spring-type terminal 1 NO + 1 NC

Manufacturer's No: 3RT2326-2AF00     Manufacturer: Siemens

Availability Back Order

£86.83
  • Contactor for AC-1 applications
  • Rated at 40 A, 400 V / 40 °C
  • 4-pole configuration
  • Coil voltage: 110 V AC, 50 Hz
  • Auxiliary contacts: 1 NO + 1 NC
  • Spring-loaded terminals
  • Size: S0

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order

Spare part

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2326-2AF00
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
110 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
4
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated operation current Ie at AC-1, 400 V -
40 Ampere
Rated operation current Ie at AC-3, 400 V -
15.5 Ampere
Rated operation current Ie at AC-4, 400 V -
15.5 Ampere
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Rated operation power at AC-4, 400 V -
7.5 Kilowatt
Type of electrical connection of main circuit -
Spring clamp connection
Voltage type for actuating -
AC

Availability Back Order

£86.83
